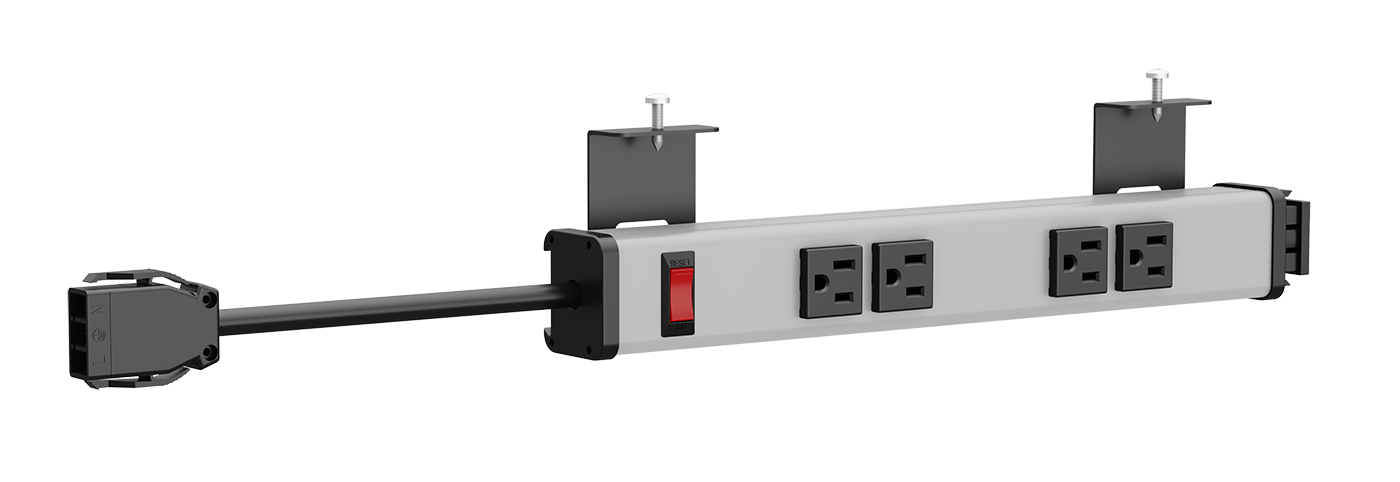

X.LINKER.US/NEMA Modular Power Strip for Office Workstations

X.LINKER.US/NEMA is a modular power strip designed for office workstation applications that require flexible and reliable power distribution. It is designed as a daisy-chain system that supports one-way plug-and-play connections, helping reduce installation risk and improve project efficiency.

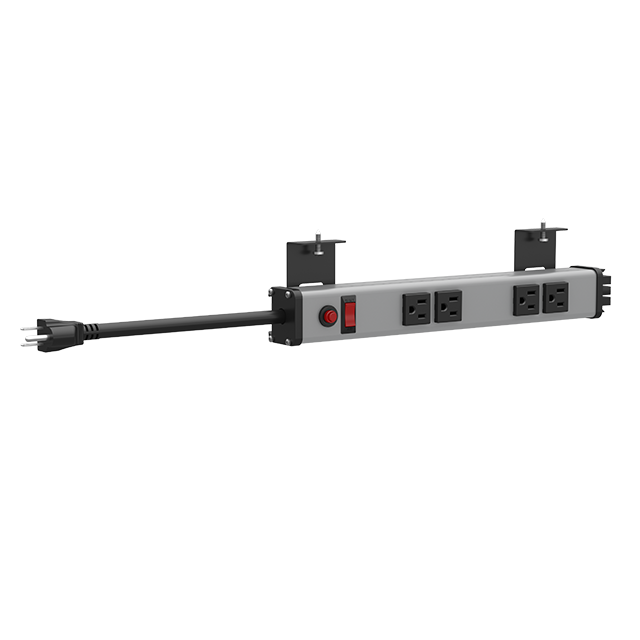

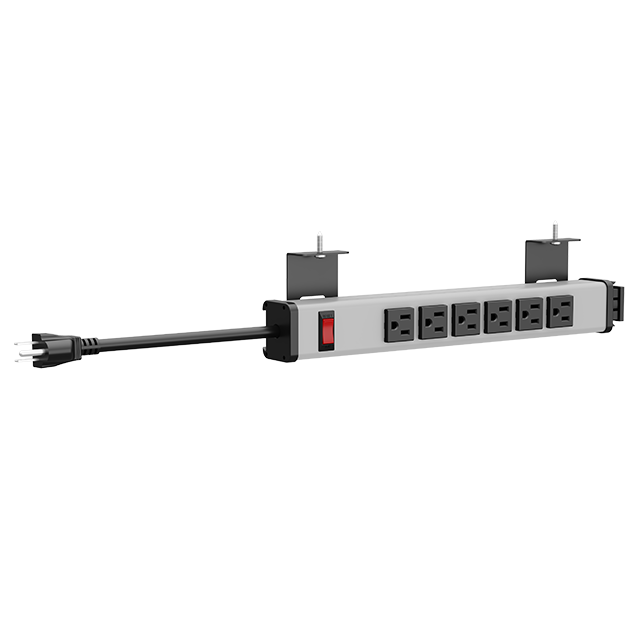

This model features 4 or 6 power outlets rated at 15A and 125V AC, with two cord lengths per unit depending on the installation requirement. It is compatible with Omni’s Triones, iPanda, Create, and Rikong power units, making it suitable for integrated workspace projects.

Specifications

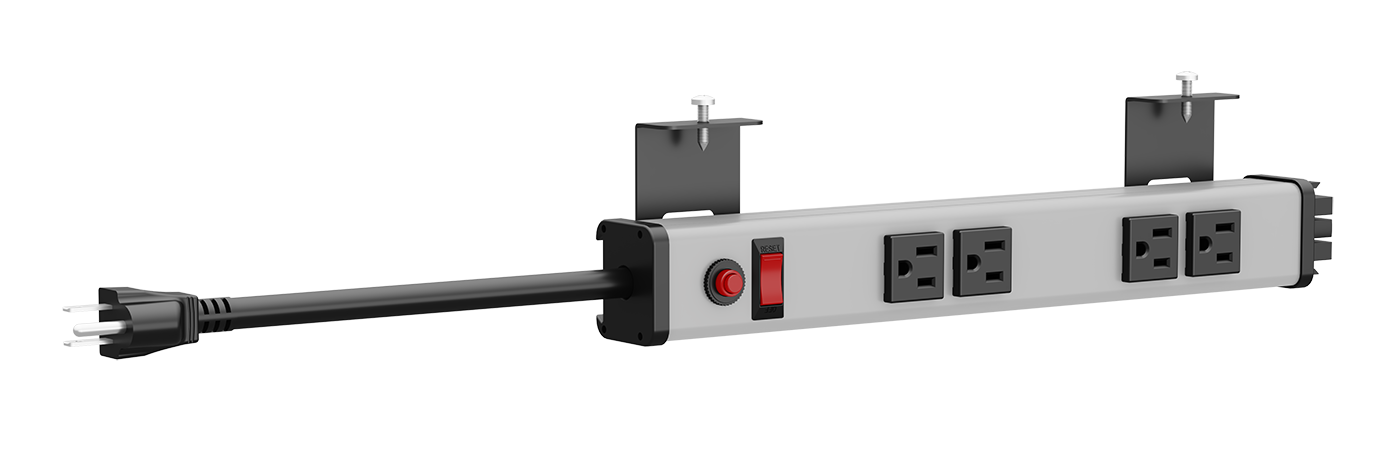

4 or 6 - 15A, 125V AC power outlets. 20 Amp circuit breaker. 2 cord lengths per unit: 2' - 3' (from power unit to inline box) and 6' - 10' (from inline box to power source) depends on the actual need. Compatible with Omni's power units: Triones, iPanda, and Create. UL962A Listed.

Features

• Pre-terminated and pre-tested one-way plug-and-play connections eliminate the risk of electrical faults.

• Reusable leads and outlets are not only more versatile to install, but also minimise waste on projects.

• Enable faster installation times, saving on labour and material costs.

Technical Specifications

Item No.: OME012A	Certification: UL Listed E5l1049

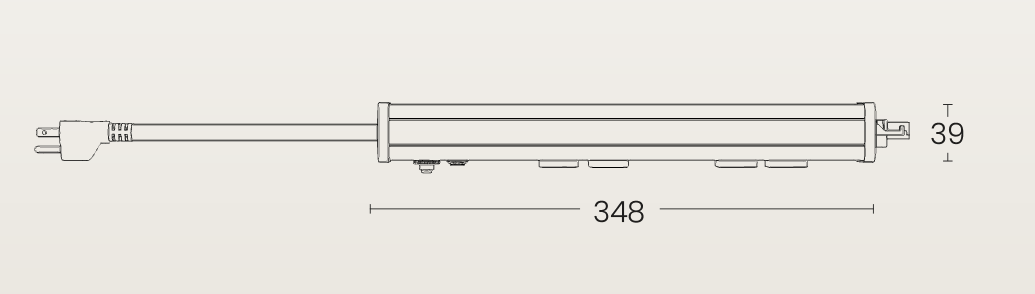

Material: Plastic (ABS)+ Aluminum Extrusion	Inner Box Package Size: 40.5 × 13.5 × 4.5 cm
Packing Size: 109 × 42 × 21 cm / 32 PCS	G.W.: 25.6 kg / ctn

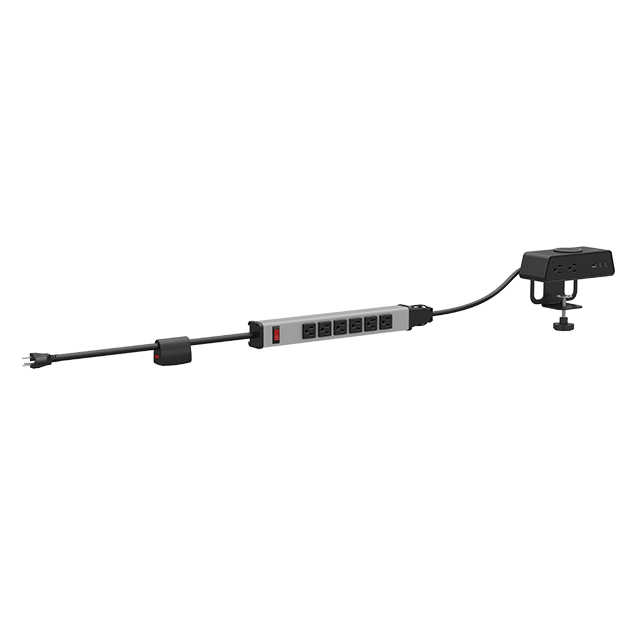

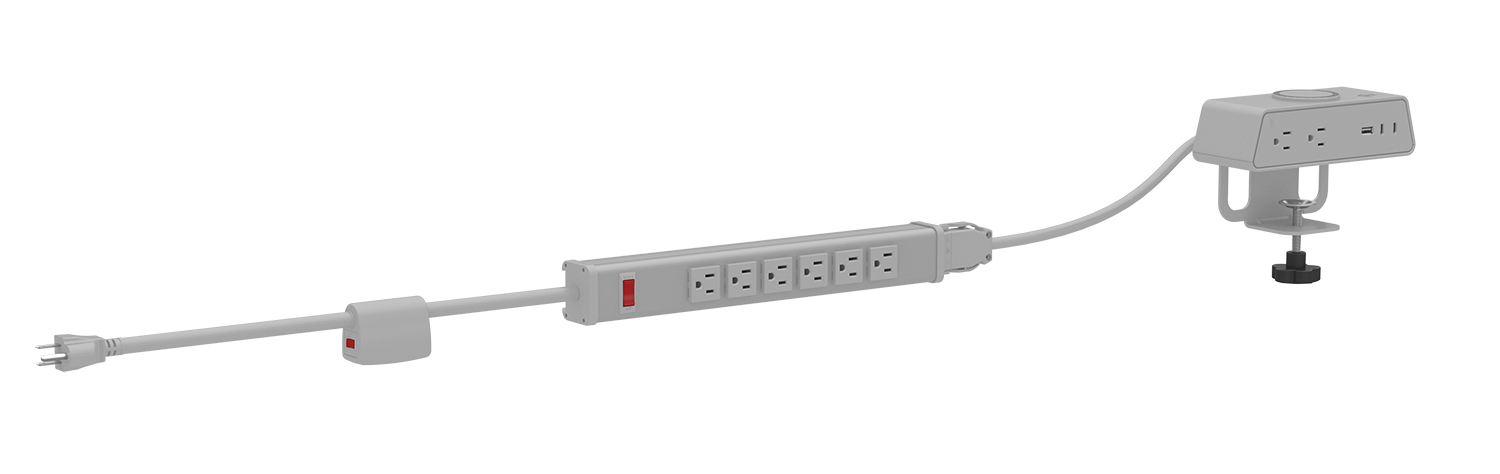

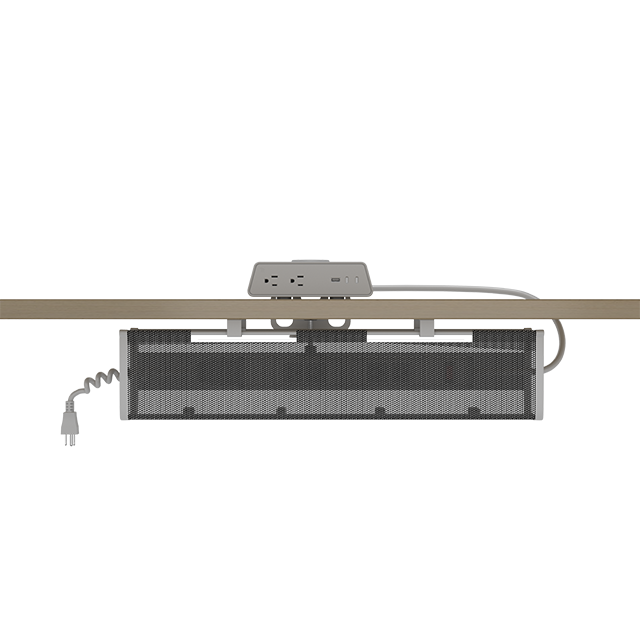

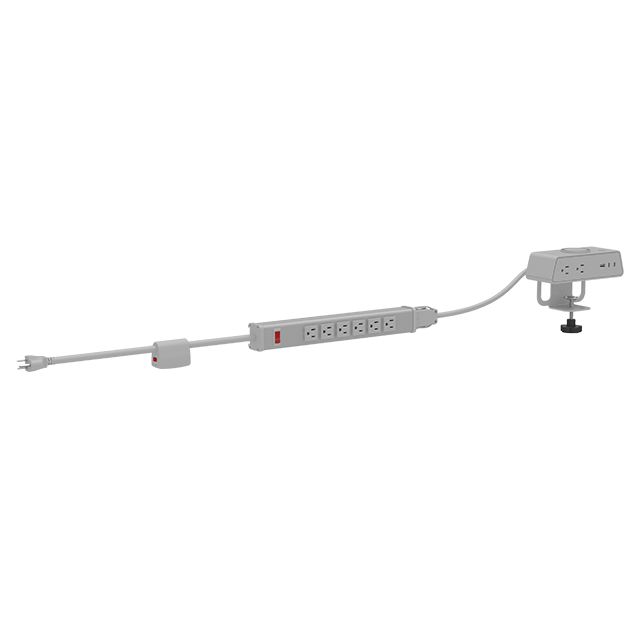

The Daisy Chain Power Bar System

OME012A	OME012B
Power Bar Starter Unit Primary FPDU	Power Bar Adder Unit Subordinate/End FPDU

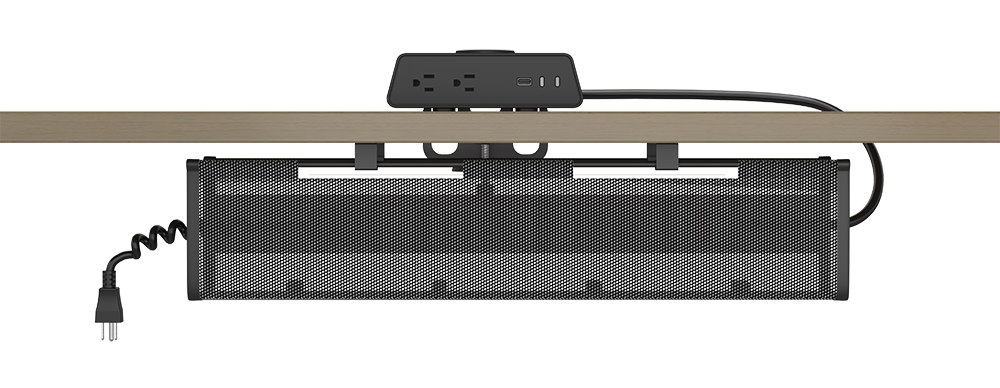

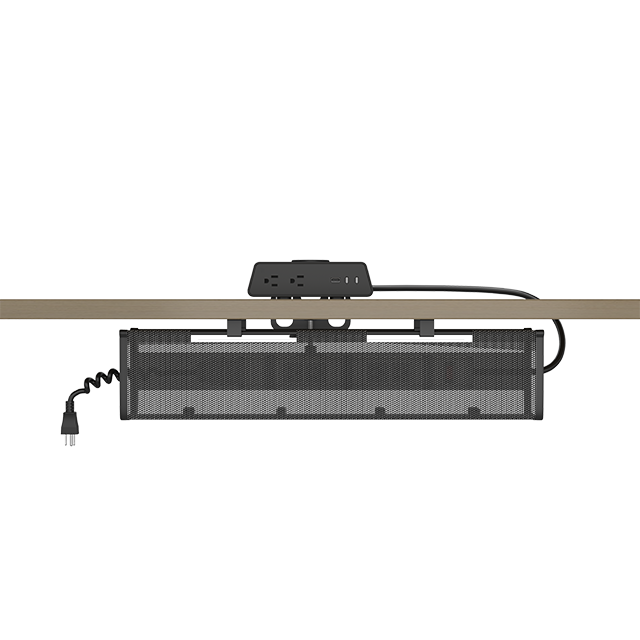

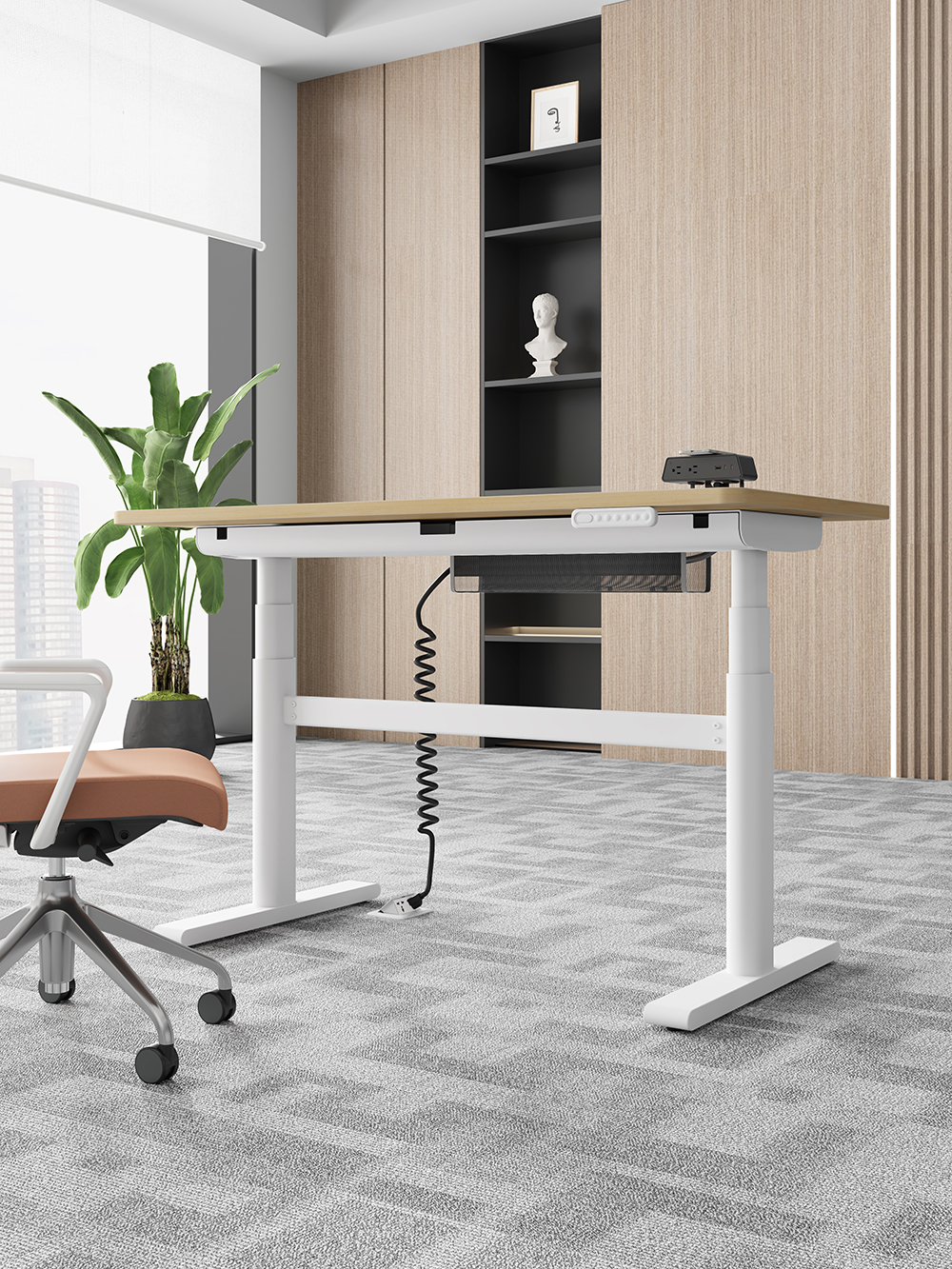

Applications

Call To Actions

Choose a safer and faster way to distribute power across workstations. Contact Us Now!

FAQs

Q: Is this product compatible with other Omni power units?
A: Yes, it is compatible with Triones, iPanda, Create, and Rikong.

Q: Is the system designed for fast installation?
A: Yes, it is pre-terminated and pre-tested, with plug-and-play connections.
