X.LINKER PRO.Version 1 System for Panel Workstations
X.LINKER PRO.Version 1 System is a shared 8-wire, 4-circuit power solution for panel workstations and power beam applications, with UL-approved system compliance.
X.LINKER PRO.Version 1 System for Panel Workstations

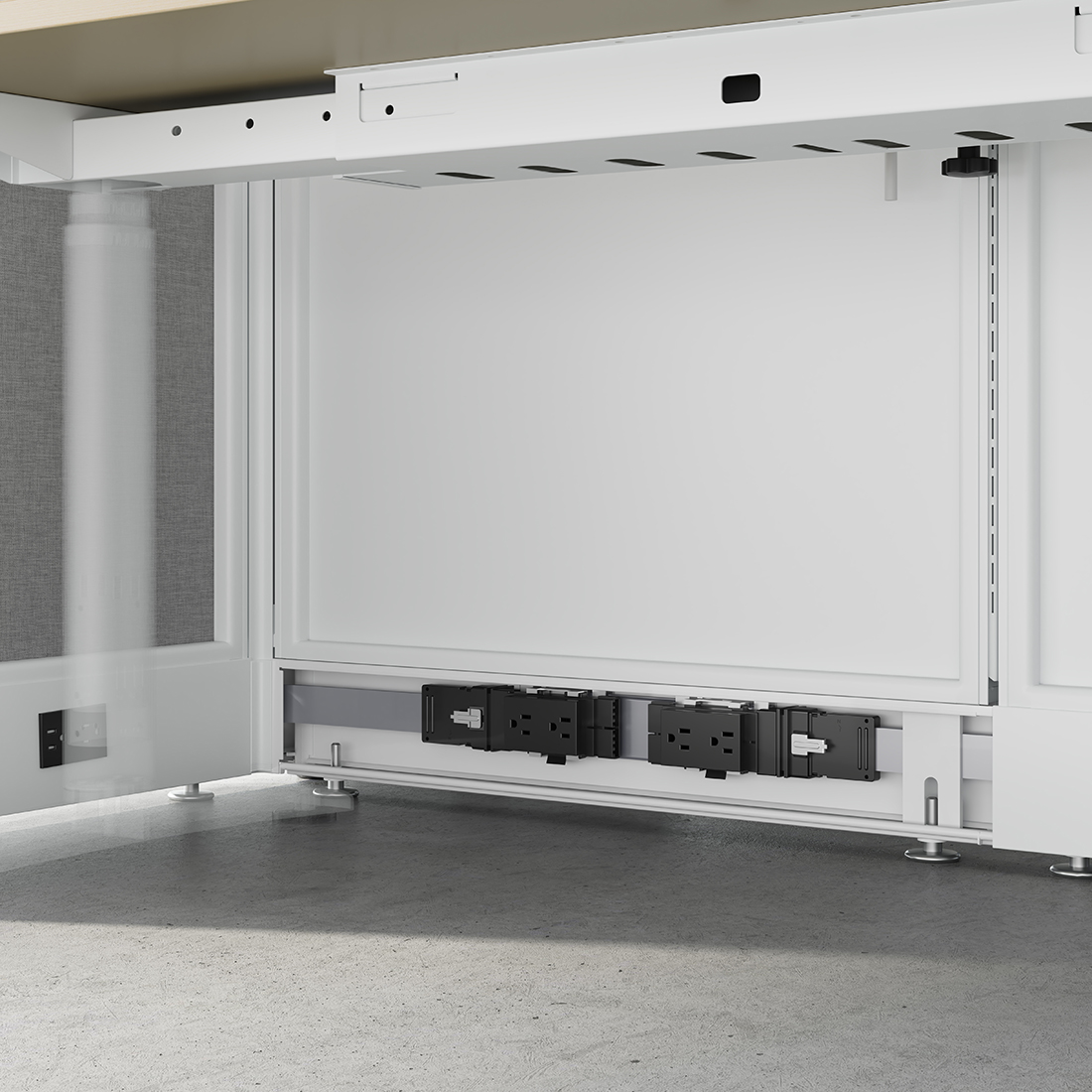

X.LINKER PRO.Version 1 System is a panel workstation power solution designed for larger workplace systems. It is built around a shared 8-wire, 4-circuit structure and is intended for use with panel or power beam applications.
The system includes receptacles, power packs, distribution harnesses, jumpers, ceiling power entries, floor power entries, and other compatible components. It is suitable for AO2, Ethospace, SQA, and similar products.
Features
System Rating: 20 A / 120 V
15A Duplex Receptacle Options
Shared or Independent Neutral Wiring Systems

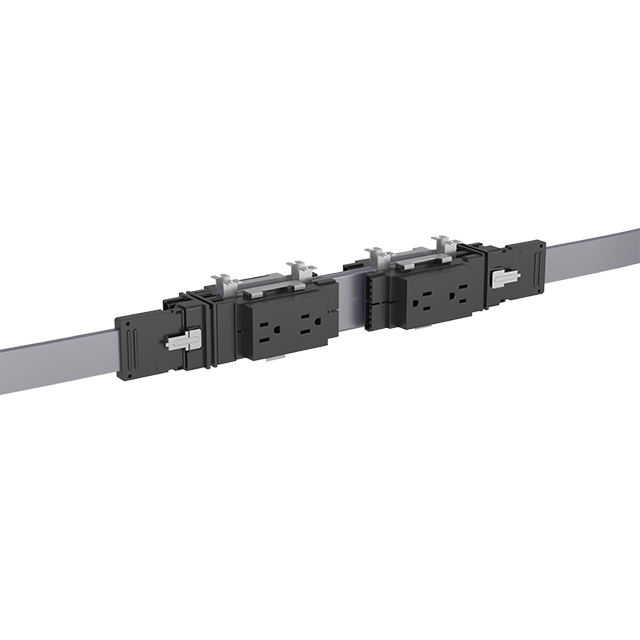

Shared 8-Wire System
Wire system components include: distribution harness, jumper, ceiling power entries, floor power entries, and receptacles (each sold separately).
Application: Panels or Power Beam
Standard distribution panel lengths: 24", 30", 36", 42", 48", 54", 60", 72"
Complies with UL approval.
Specifications
System Rating: 20A / 120V
15A Duplex Receptacle Options
Shared or Independent Neutral Wiring Systems
Standard distribution panel lengths: 24", 30", 36", 42", 48", 54", 60", 72"
Sizes: 12", 18", 24", 30", 36", 42", 48", 60"
Certification: Complies with UL approval.
Component Details and Dimensions

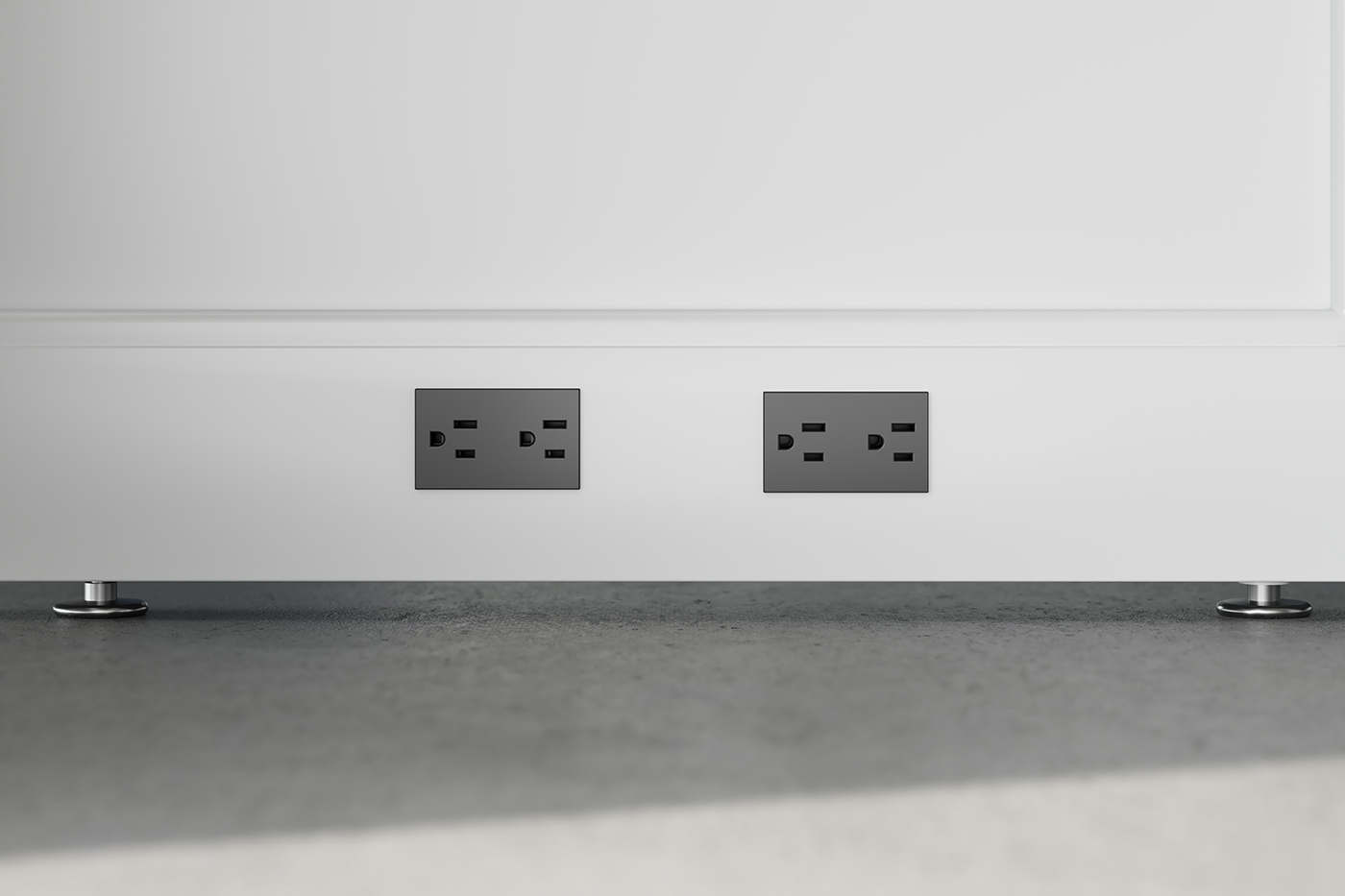

Receptacles

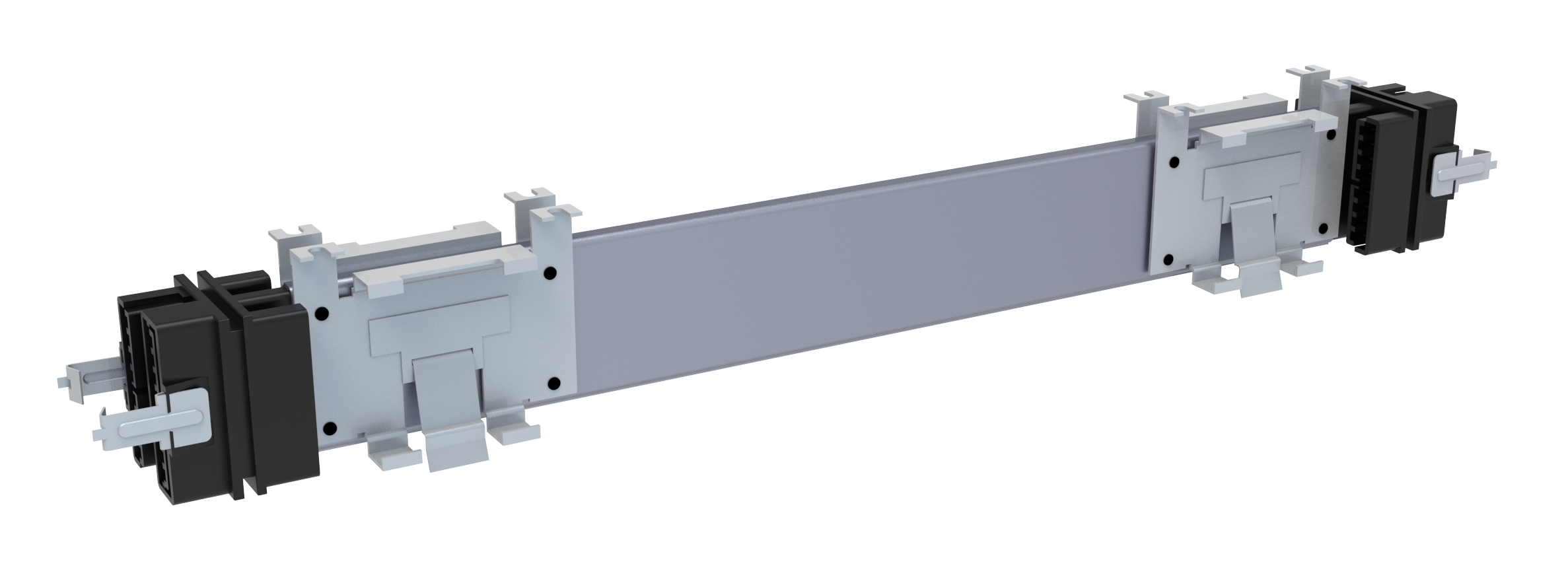

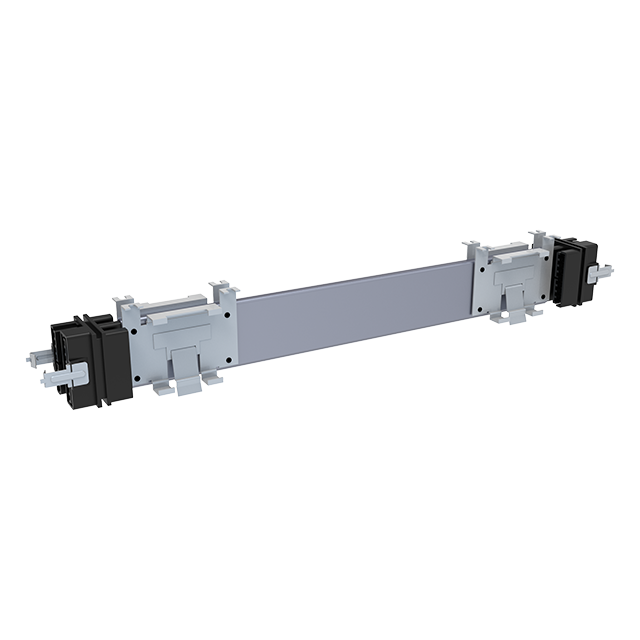

Power Pack

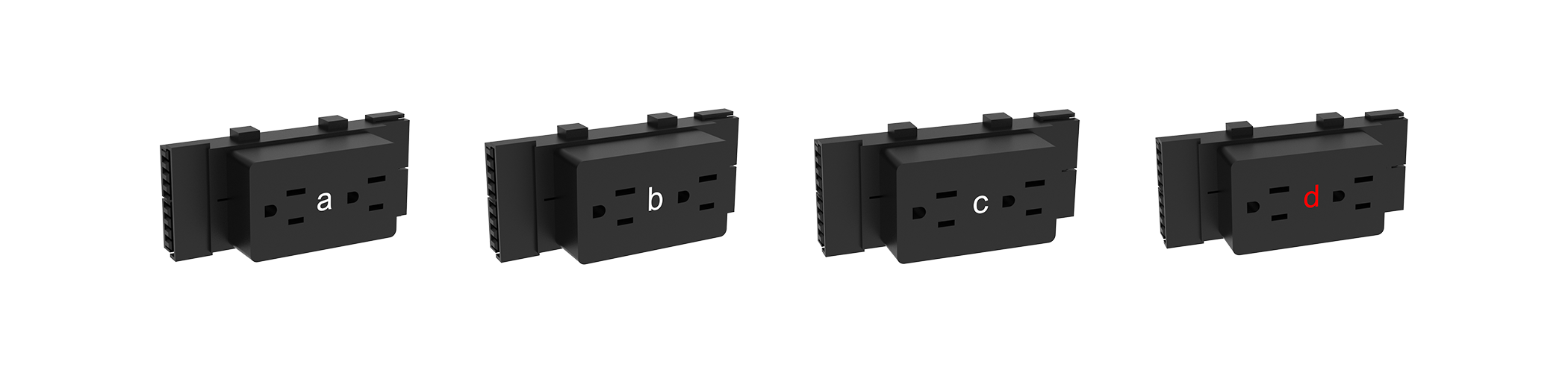

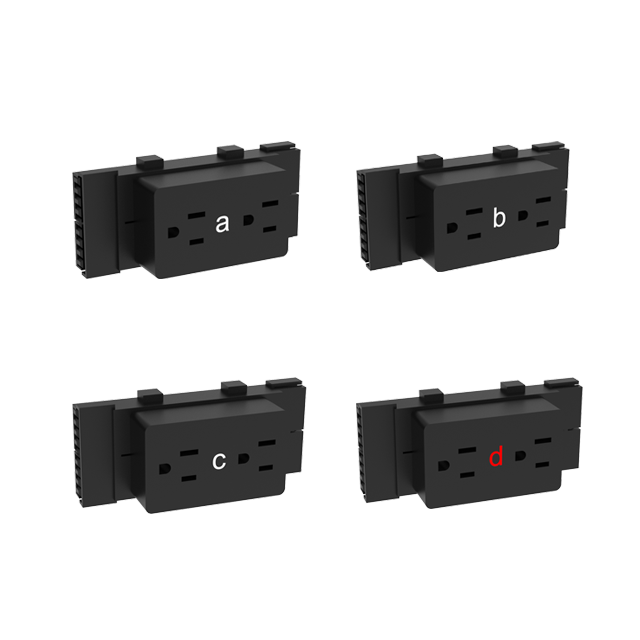

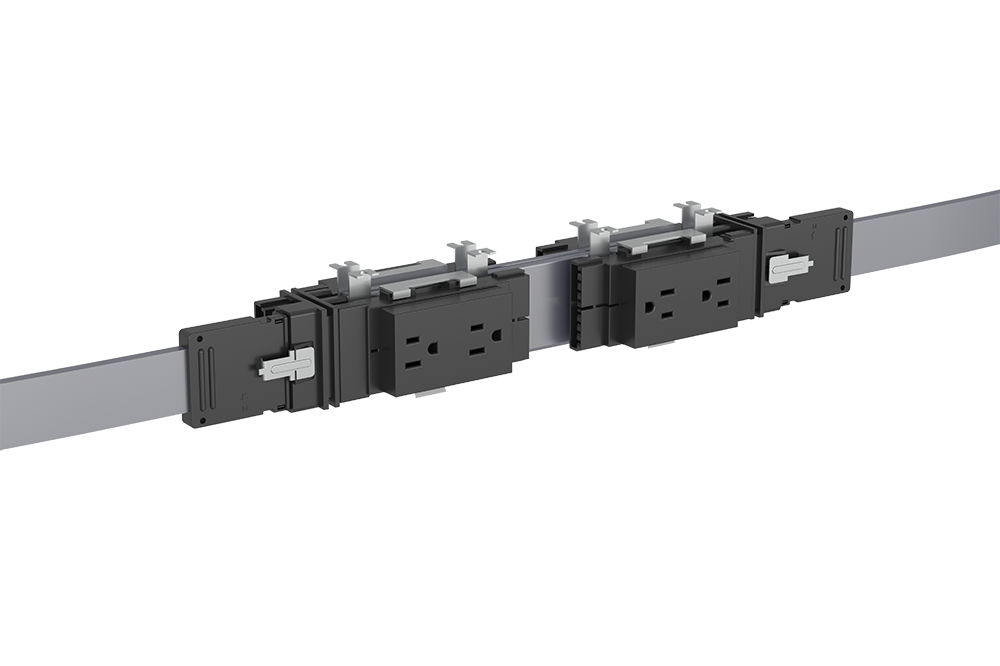

HMP10
Receptacle, Duplex, 15 Amp for AO2 Version 1 & 2 Power and Ethospace 8-Wire, 4-Circuit. 3+1 system used with OEM Power and other compatible systems. Circuits A/B/C/D.
HMP08
Sizes: 12”, 18”, 24”, 30”, 36”, 42”, 48”, 60”
Power pack for Version 1 AO2 Power 8-Wire, 4-Circuit.

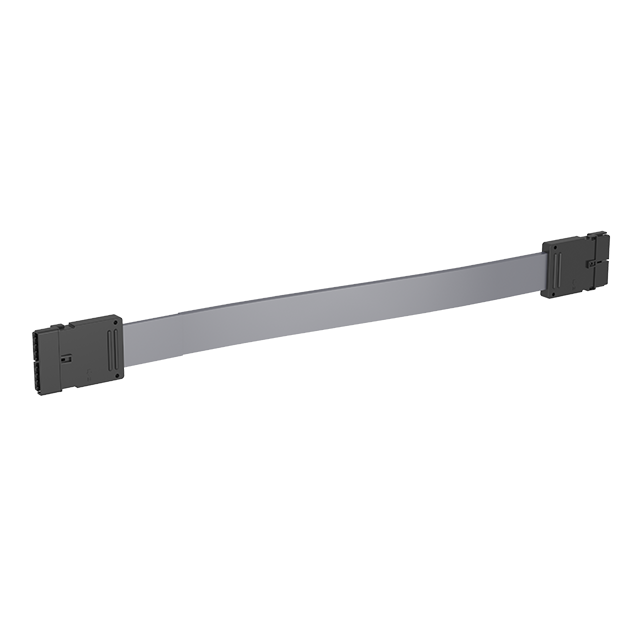

Pass-Through Festoon

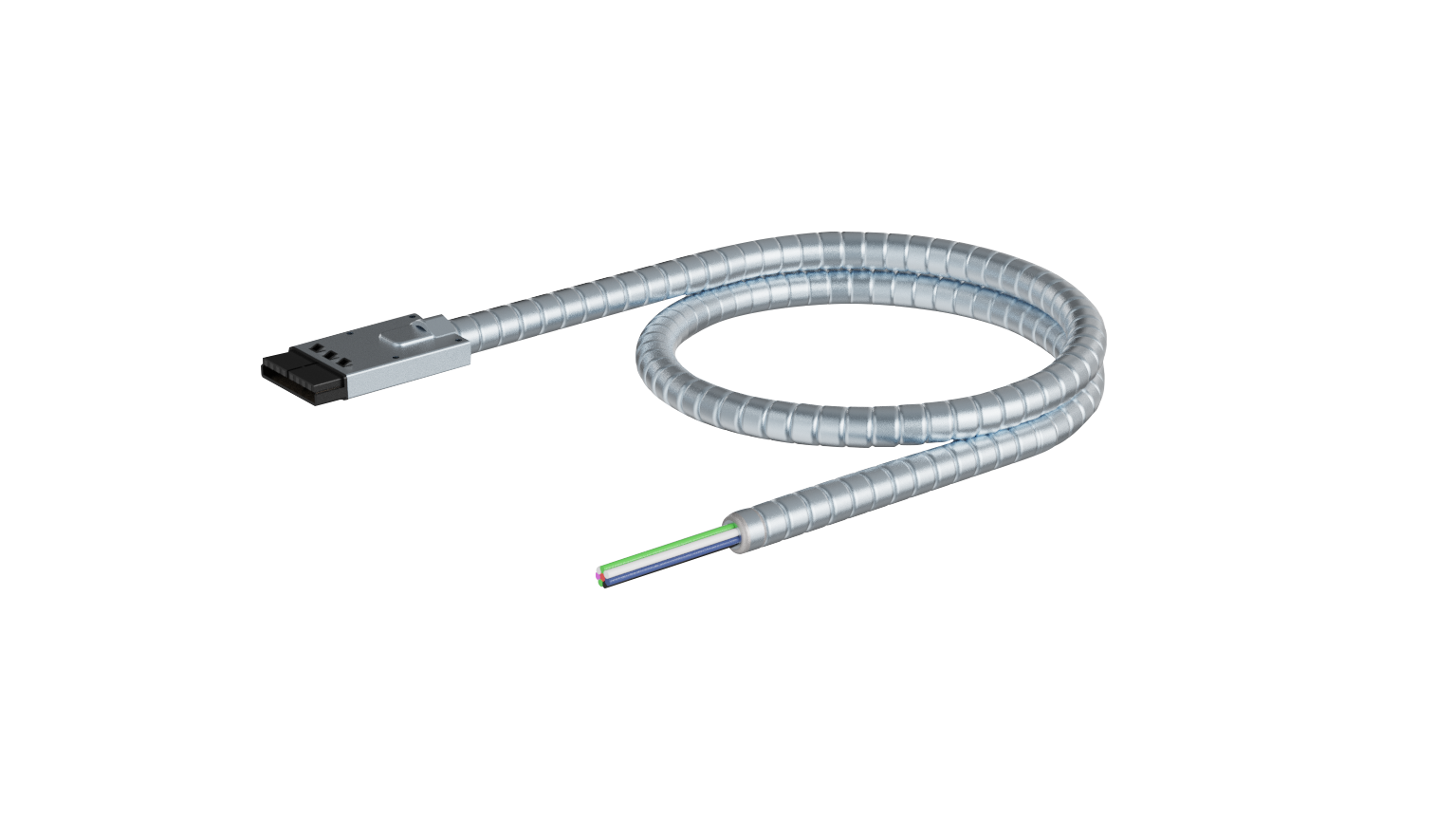

Wall & floor Power Entry

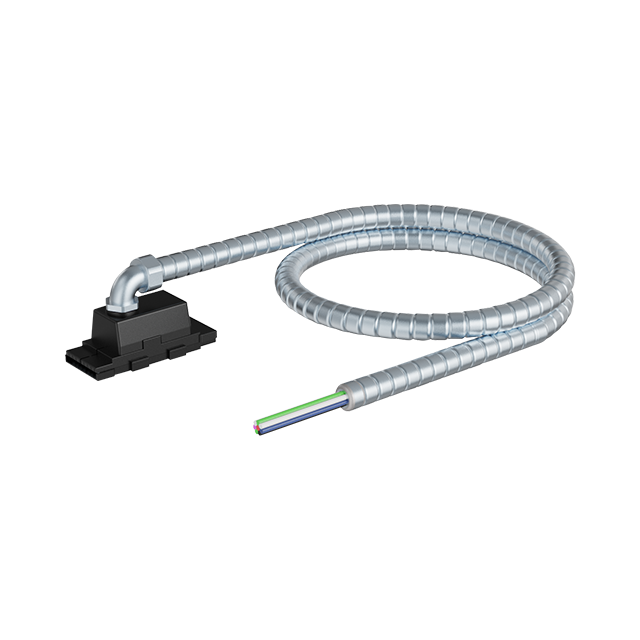

Electrical, AO, Ceiling Feed

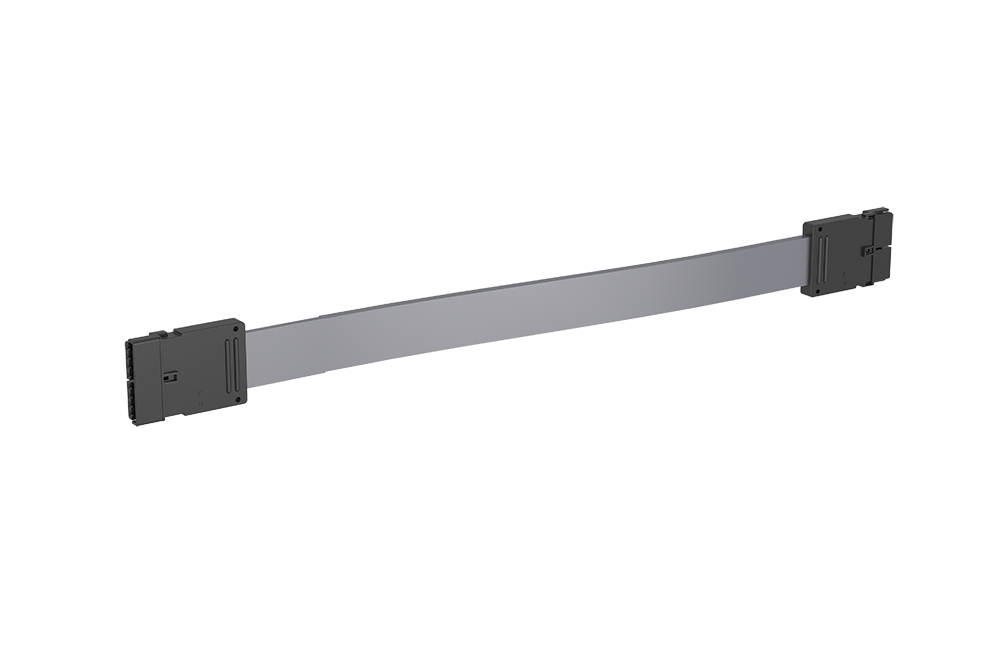

HMP03-1
8 Power festoon jumper for Version 1 AO2 Power 8-Wire,
4-Circuit, 3+1 system for Version 1 OEM Power. 19”, 23” power harness for panel-to-panel jumper.

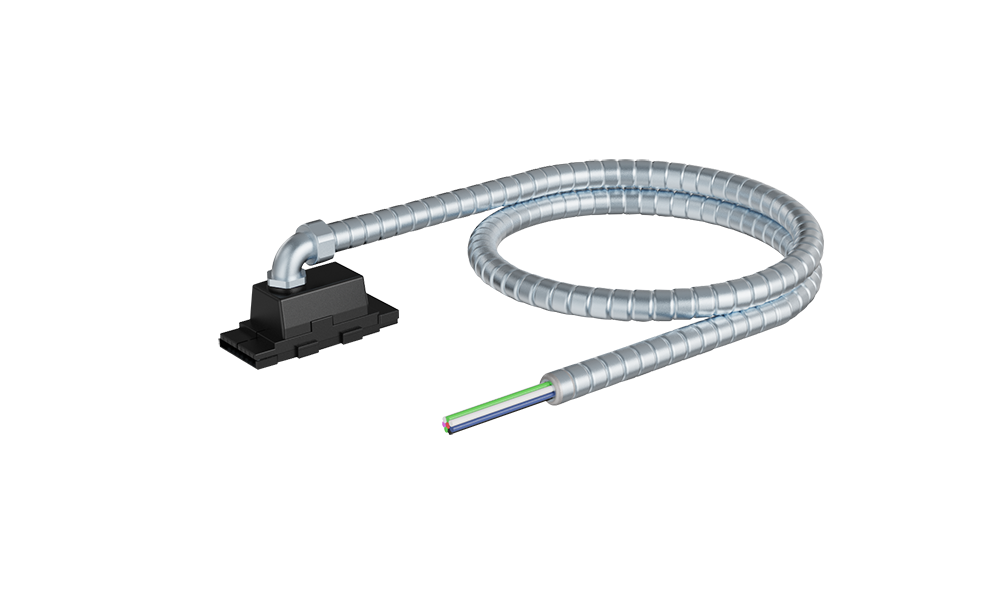

HM2P20-1-GREY
Used to bring power from the building wall to the panel unit. A licensed electrician is responsible for connecting the base feed to the power box in the wall.

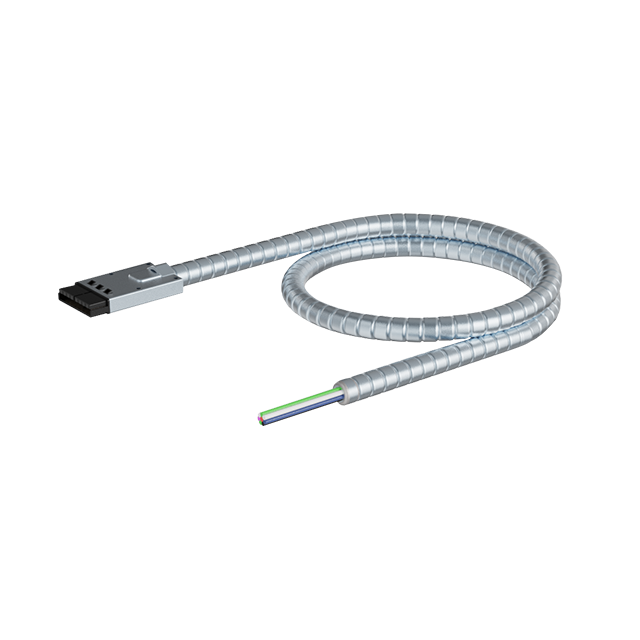

HM2P-20-2-ZN
Ceiling Power Feed for Power Pack End Location on Panel Version 2. Plugs into the end of a Version 2 power pack (8-Wire, 4-Circuit).
Fits Version 2 power in AO2, Ethospace, SQA and similar products. Nominal length is 144".

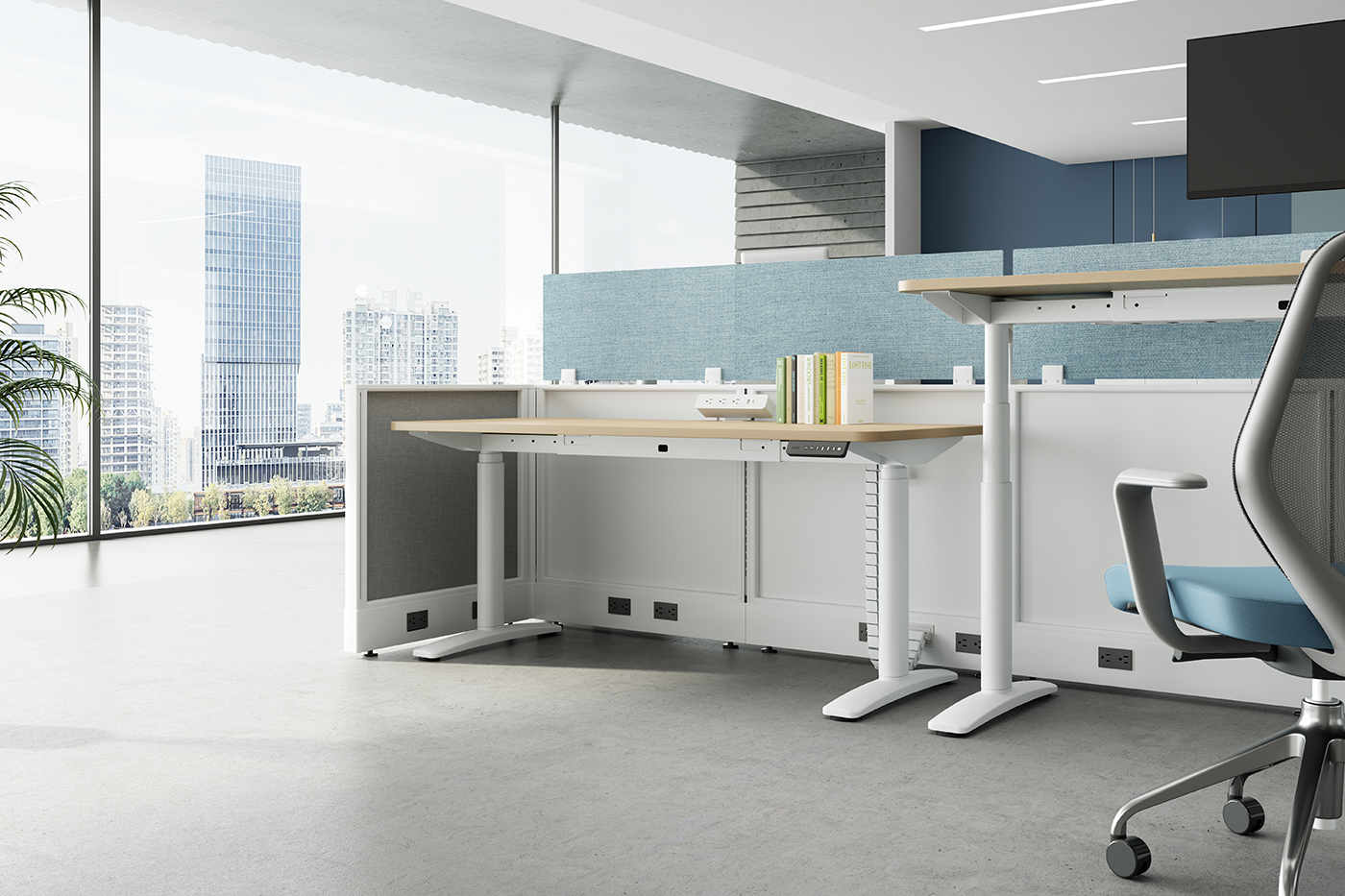

Applications
panels
power beam
panel workstation systems
AO2 / Ethospace / SQA style workplace projects
Call To Actions
Build a complete modular power network for panel-based workspaces.
