X.LINKER PRO.US/NEMA Heavy-Duty Modular Power Strip

X.LINKER PRO.US/NEMA features tamper-resistant outlets, overcurrent protection, and modular daisy-chain connection for office workstations, benches, and conference tables.

Quantity:
Availability:





Inquire Add to Basket

Model:
X.LINKER PRO.US/NEMA
Brand:
Omni
Code:
X.LINKER PRO.US/NEMA

Product Description

X.LINKER PRO.US/NEMA Heavy-Duty Modular Power Strip

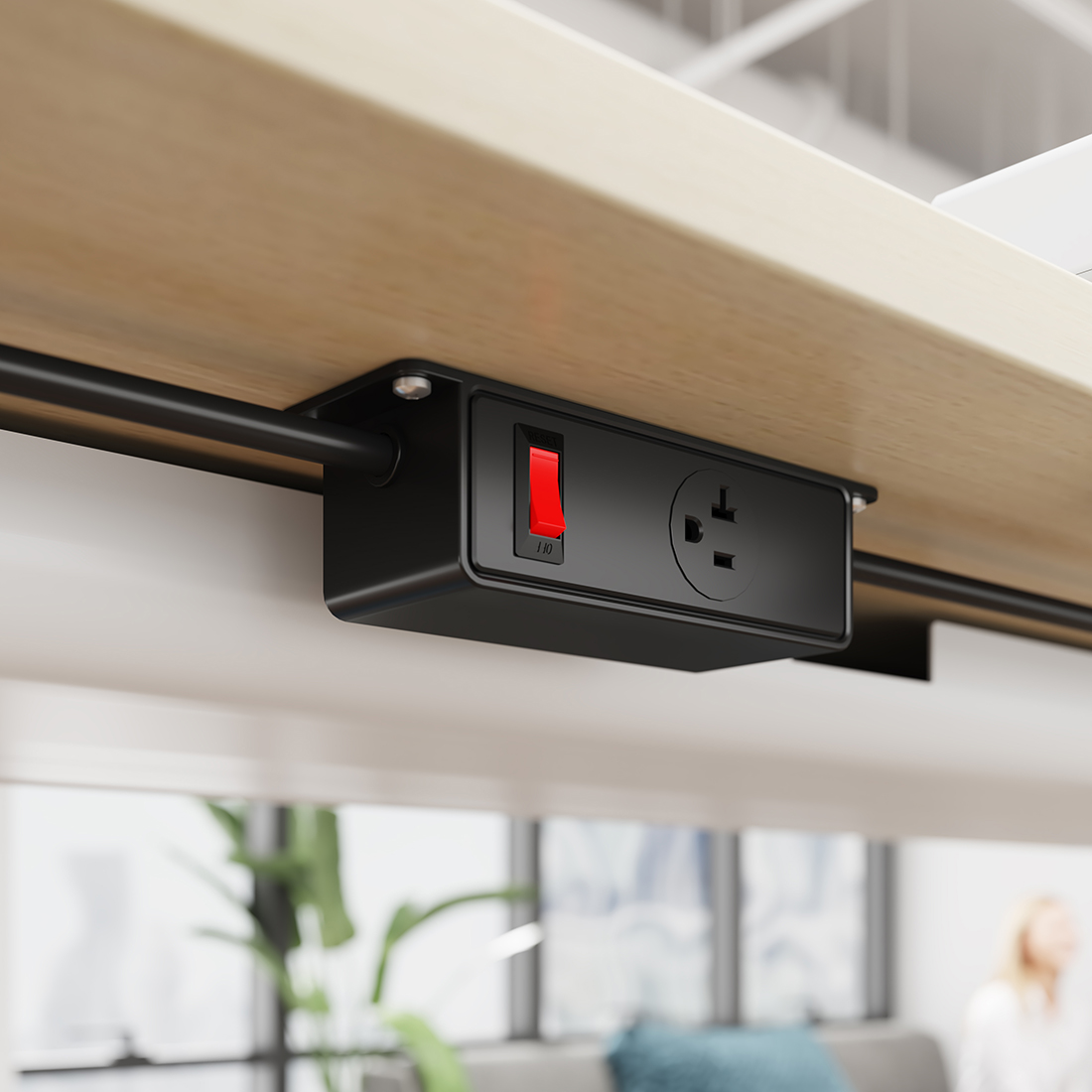

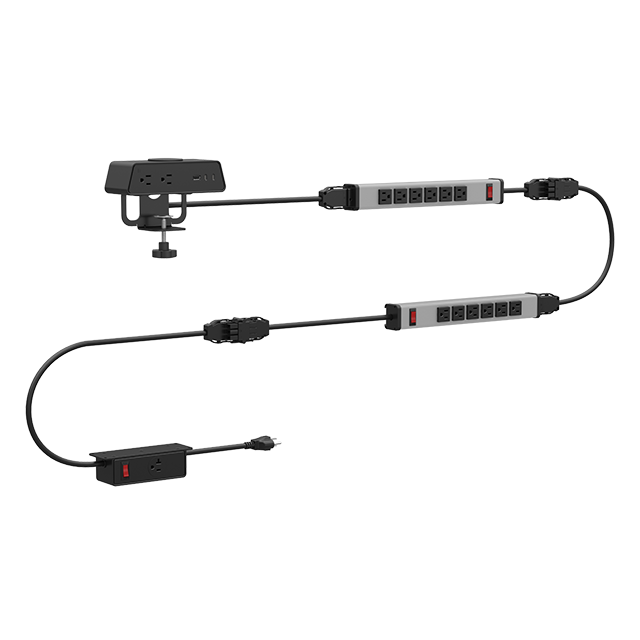

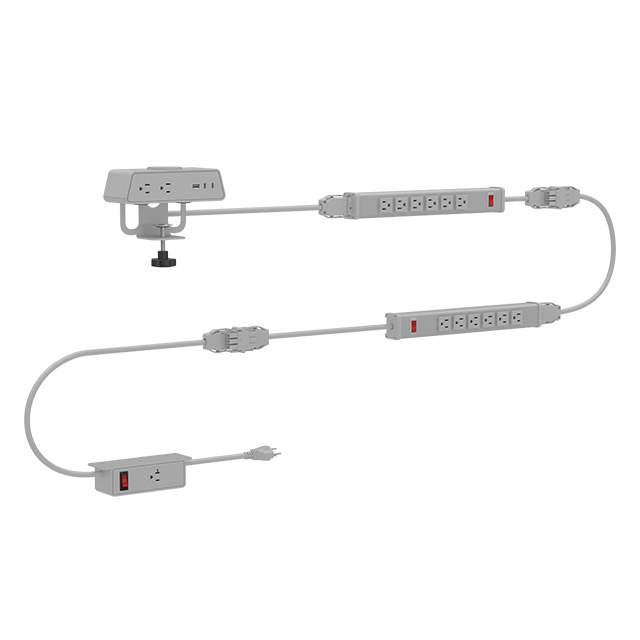

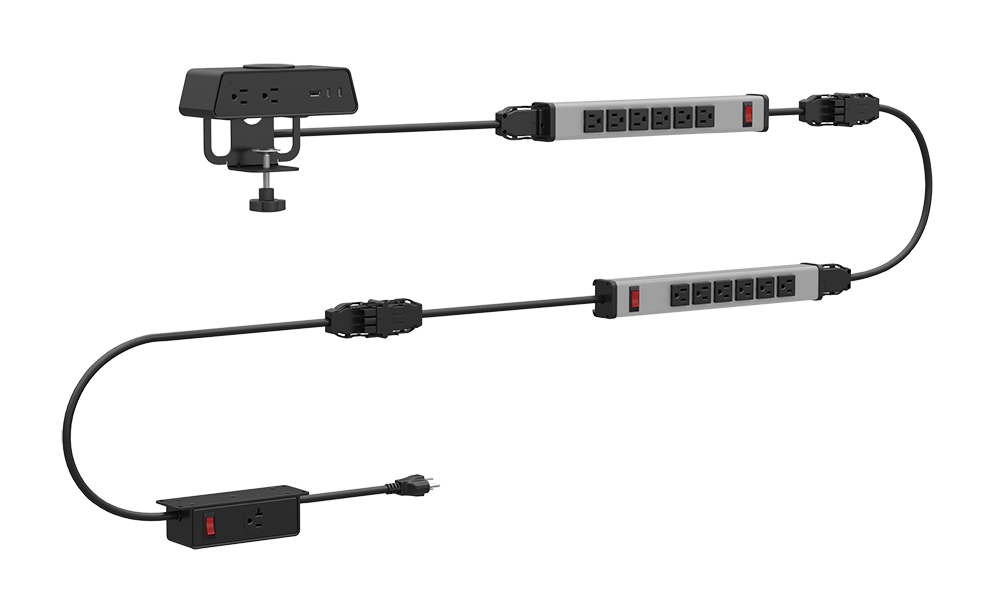

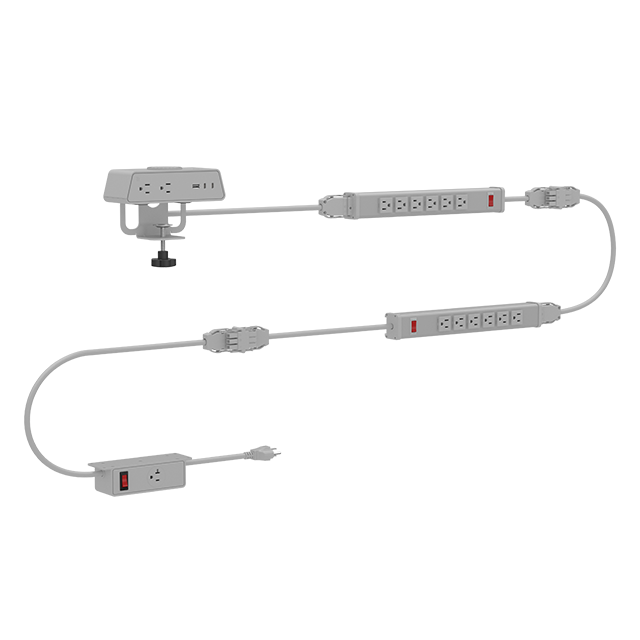

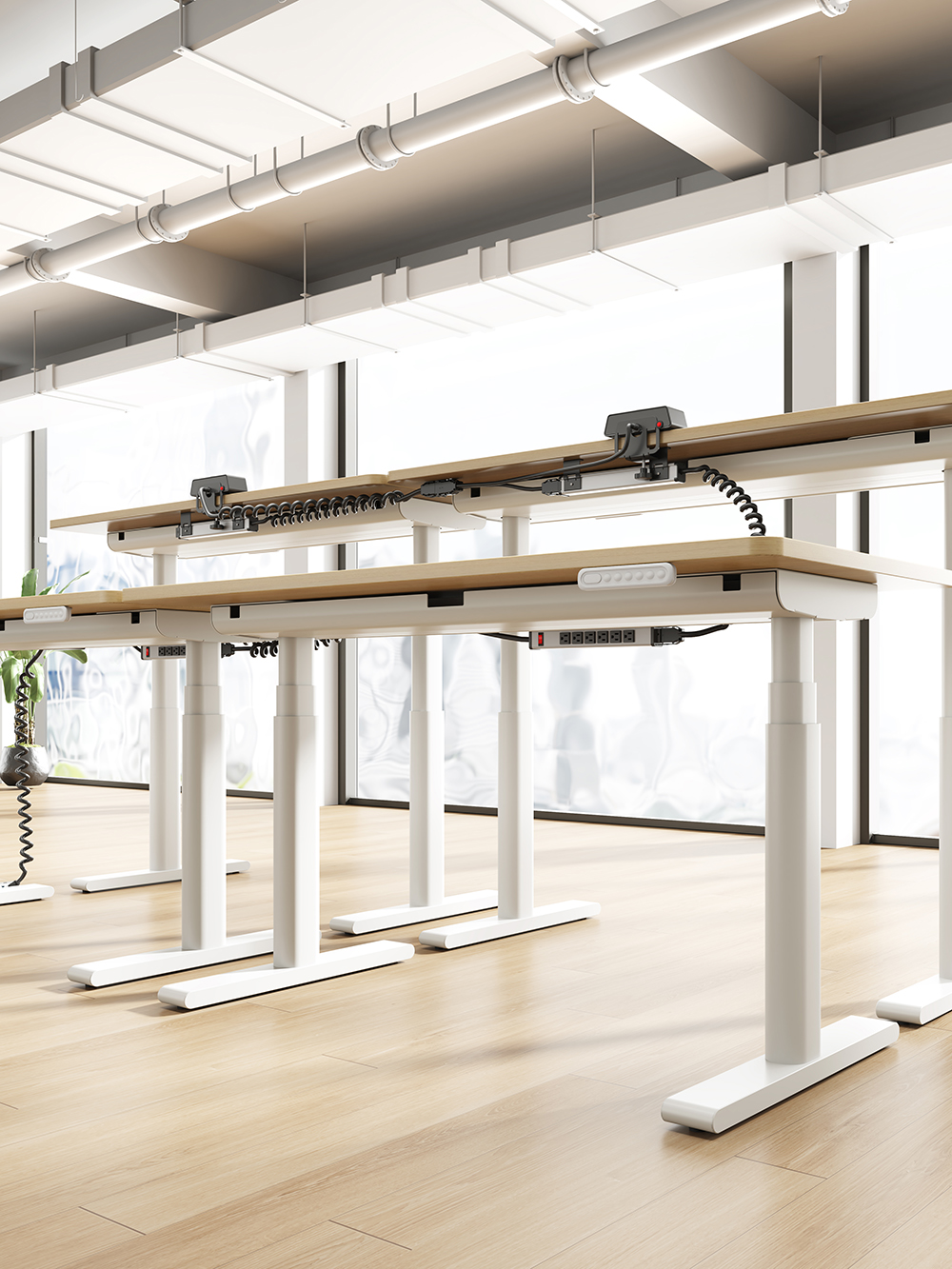

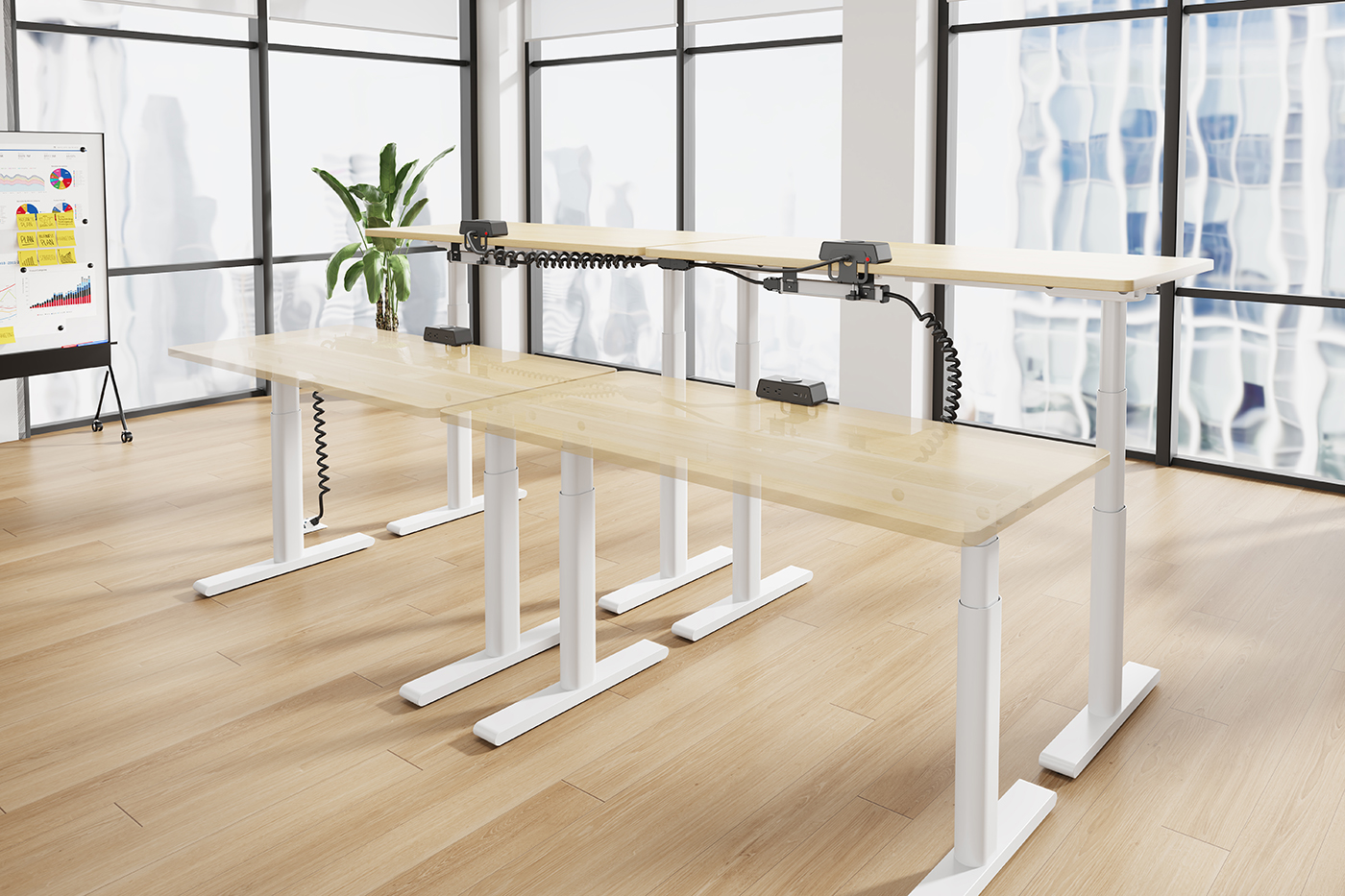

X.LINKER PRO.US/NEMA is a heavy-duty modular power solution designed for office workstations and flexible workspace applications. It supports daisy-chain connectivity and is built for above-desk or under-desk use, making it suitable for modern training rooms, meeting spaces, and office environments.

The main power input is equipped with a tamper-resistant outlet and an overcurrent protector. The system is single circuit and offers 20A/15A overcurrent protection with two options. It supports unidirectional connection, anti-misinsertion structure, and layout options such as single-sided or back-to-back connection.

Features

Single circuit.
20A/15A overcurrent protection, with two options.
Designed for use with Power FPDU.
No specific connection sequence required.
Unidirectional connection, with anti-misinsertion structure.
Layout options: single-sided or back-to-back connection.
Accommodates up to 12 ports and 8 sockets maximum.
All sockets are tamper-resistant.

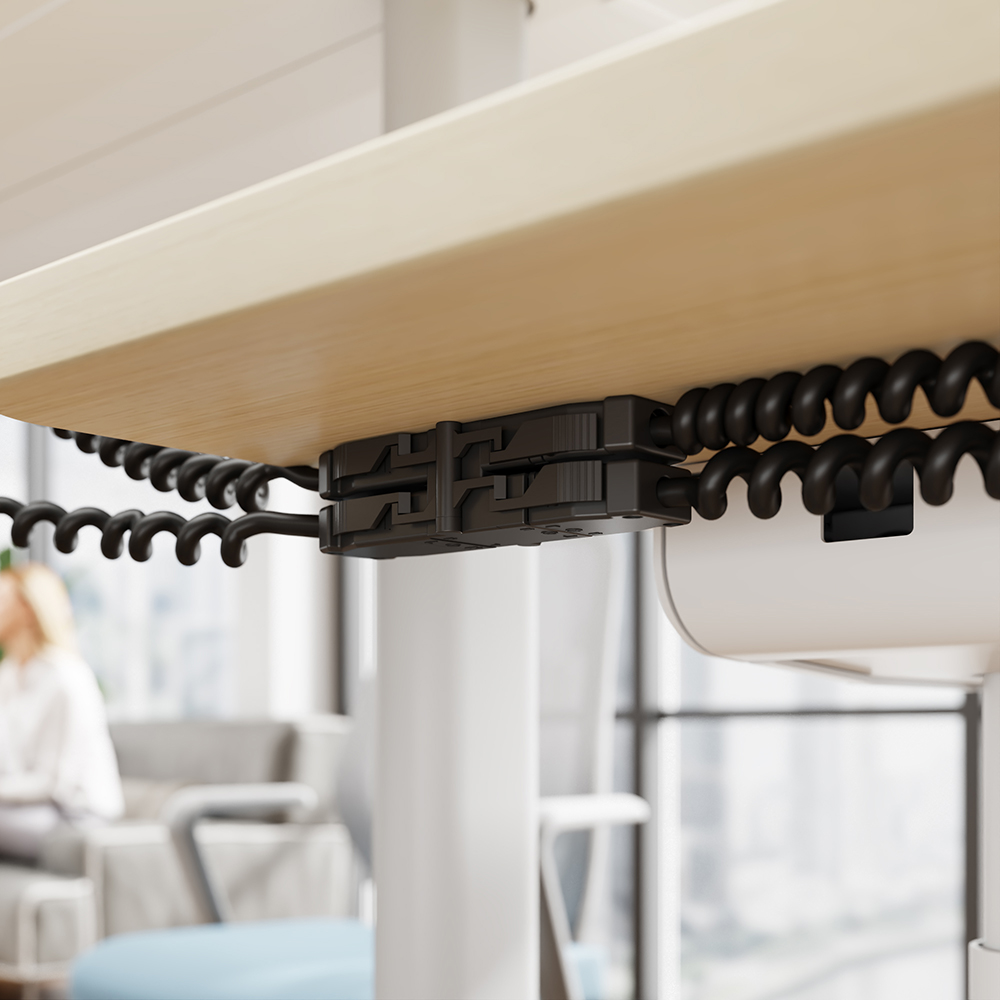

Choice of straight-line or coiled jumpers.
Installation hardware included.

Specifications

20A / 15A overcurrent protection	Up to 12 ports and 8 sockets maximum
Maximum total length: 31'	Jumper length: 1' minimum to 20' maximum
Installation method: surface-mounted	Loop connection length: 2' (maximum 98')
Certification: UL-listed safety

Component Details and Dimensions

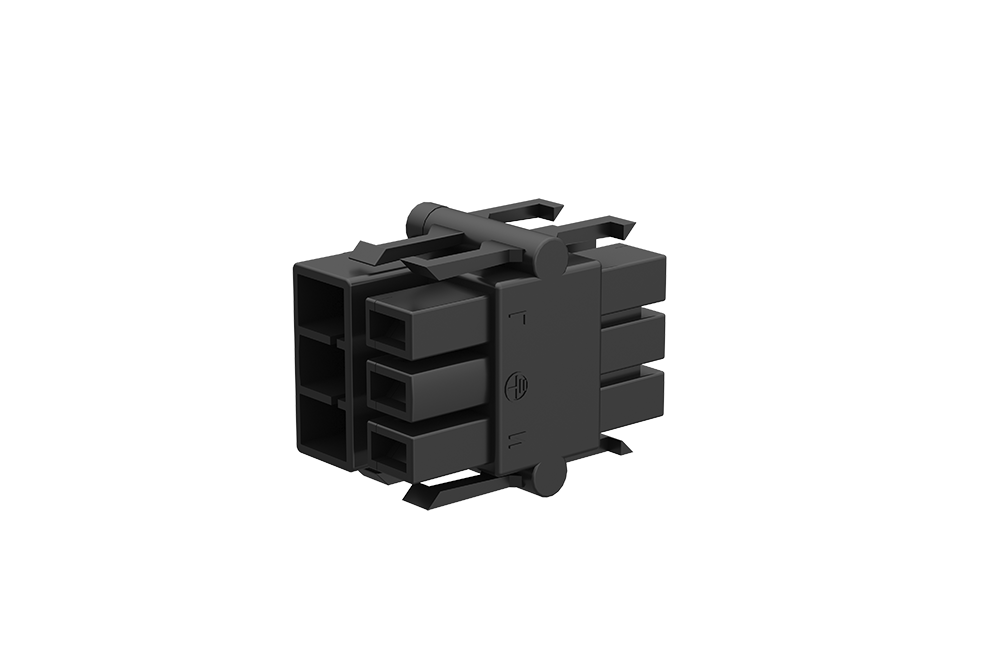

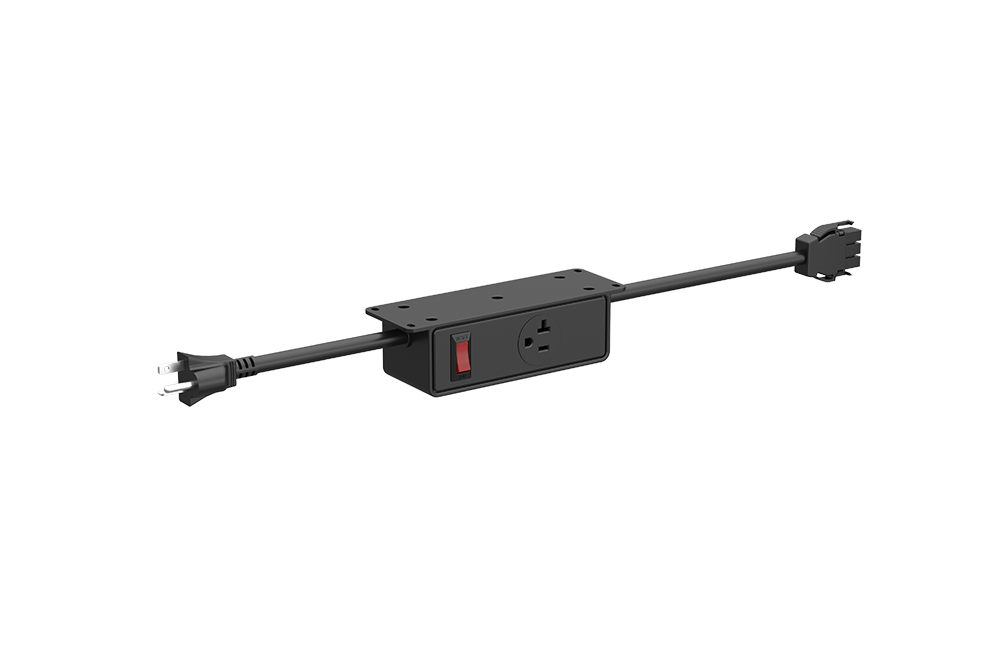

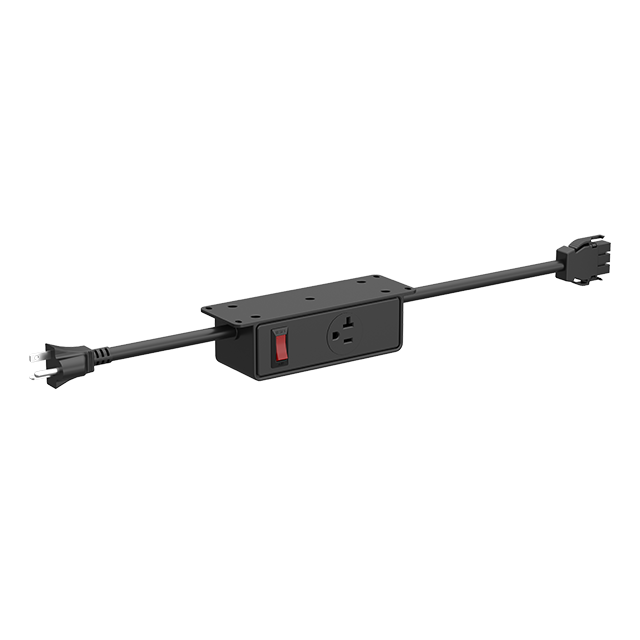

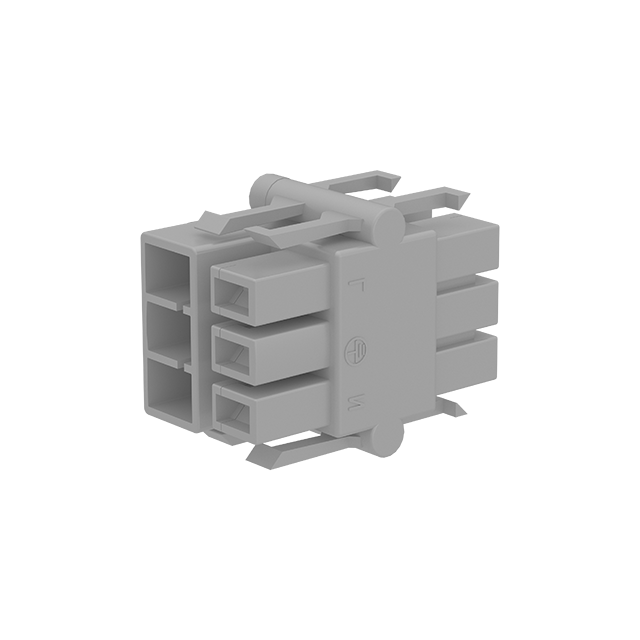

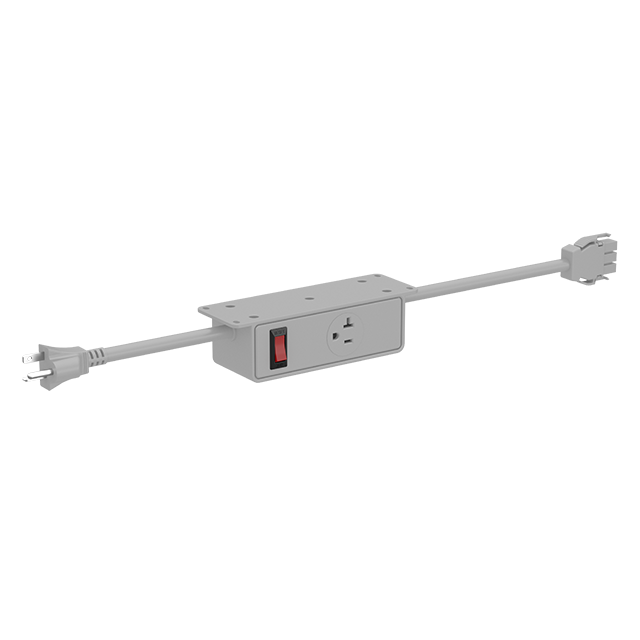

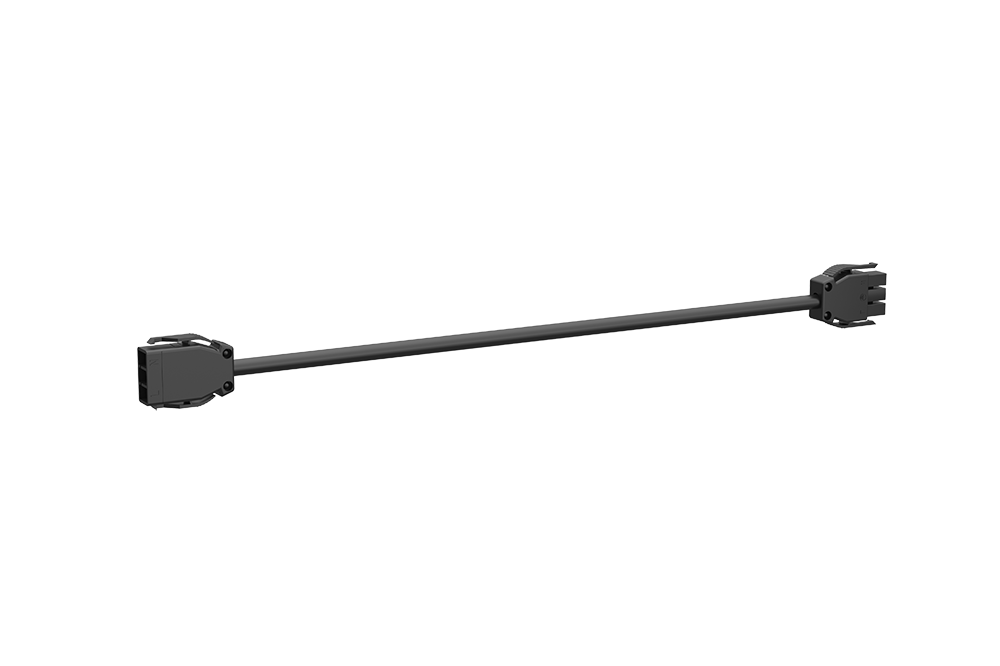

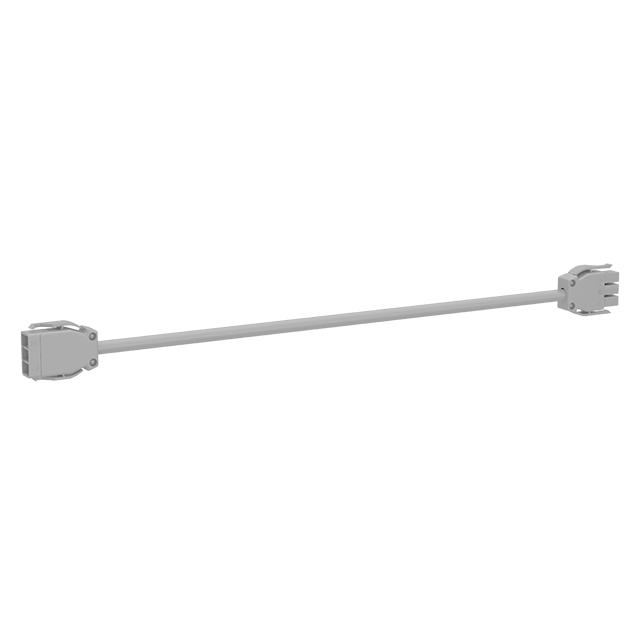

Power Input – Main FPDU	Jumper	TAG Connector

OME016P	OME016J	OME016L
The main power input is equipped with a tamper-resistant outlet and an overcurrent protector. Maximum total length: 25 feet. Installation method: surface-mounted.	Up to a total length of 31', any number of jumpers can be connected with no quantity limit. Jumper length: 1' minimum to 20' maximum. Loop connection length: 2' (maximum 98'). The system allows a maximum of 3 loop connections and jumpers.	4 ports, 1 input, 3 outputs.
