YZ-S — Single-Person Office Phone Booth (Standard)

Compact single-person acoustic booth delivering privacy, fresh air ventilation, motion sensor lighting and integrated power for focused calls.

Quantity:
Availability:





Inquire Add to Basket

Model:
YZ-S
Brand:
Omni
Code:
YZ-S

Product Description

A compact, certified acoustic phone booth for one person — privacy, ventilation and integrated power.

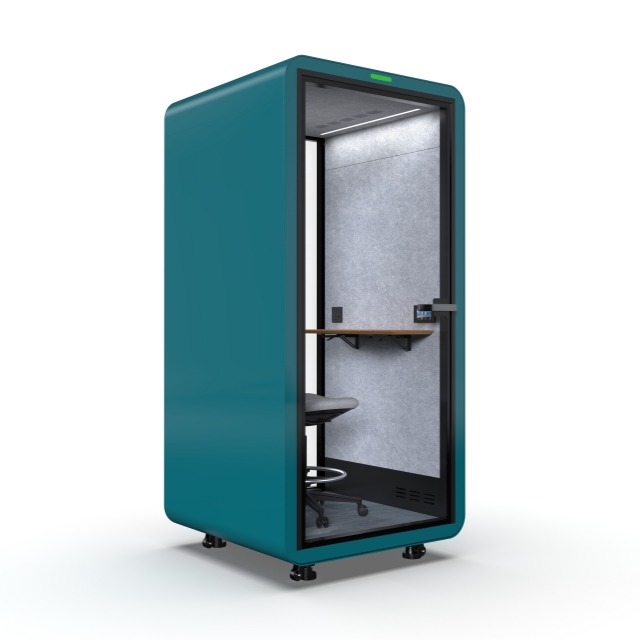

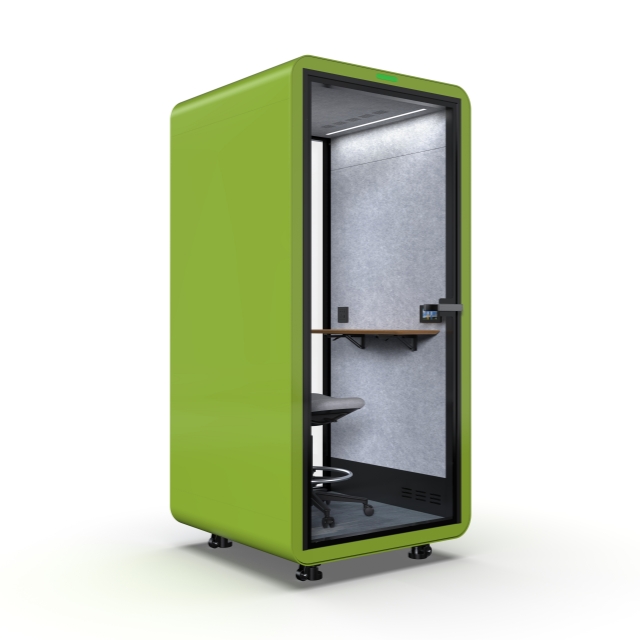

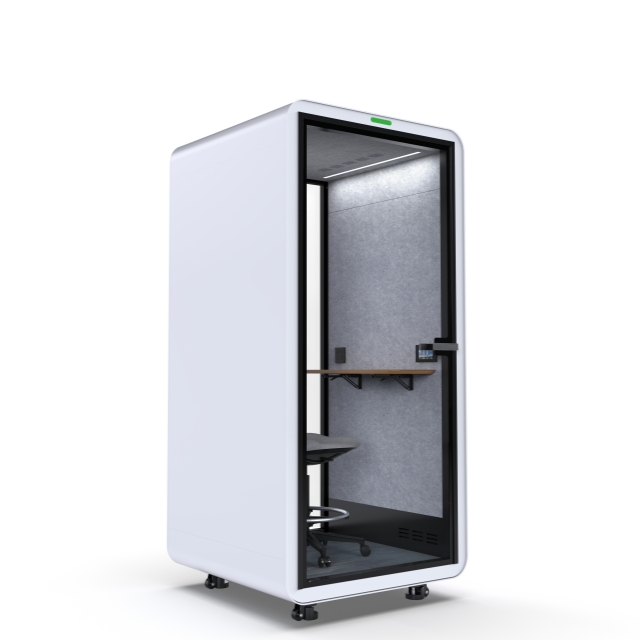

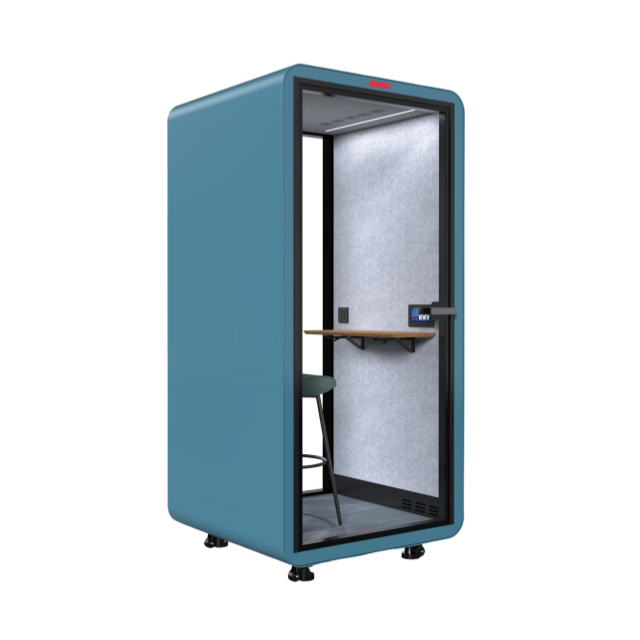

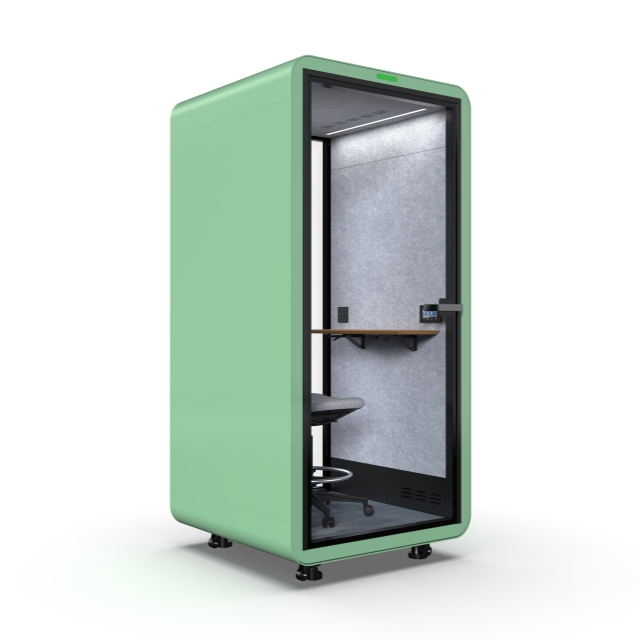

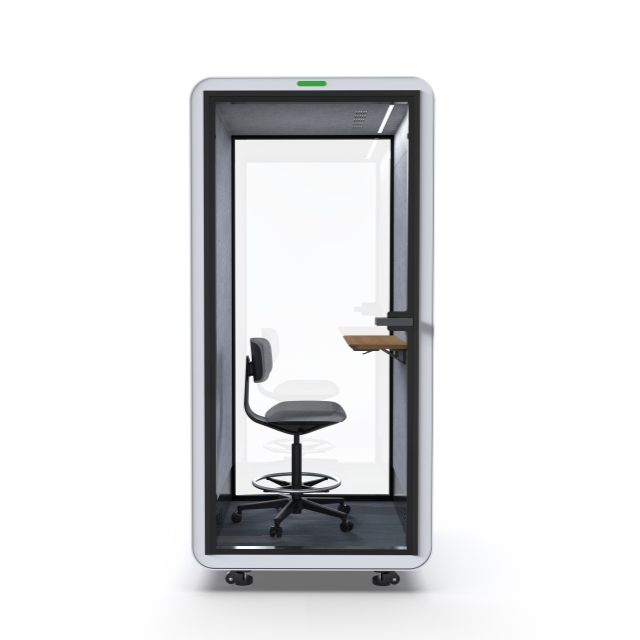

YZ-S is a compact single-person office phone booth engineered for private calls, one-to-one video calls and focused work. Constructed with a powder-coated steel frame, laminated acoustic tempered glass door and premium absorption panels, YZ-S achieves professional sound reduction (28–31 dB) while preserving visual openness. Standard features include a second-generation fresh air ventilation system, microwave motion-sensing lighting with touch dimming, integrated 100–230V power panel and internal cable routing. Lockable caster wheels make placement flexible for modern open-plan offices and coworking spaces.

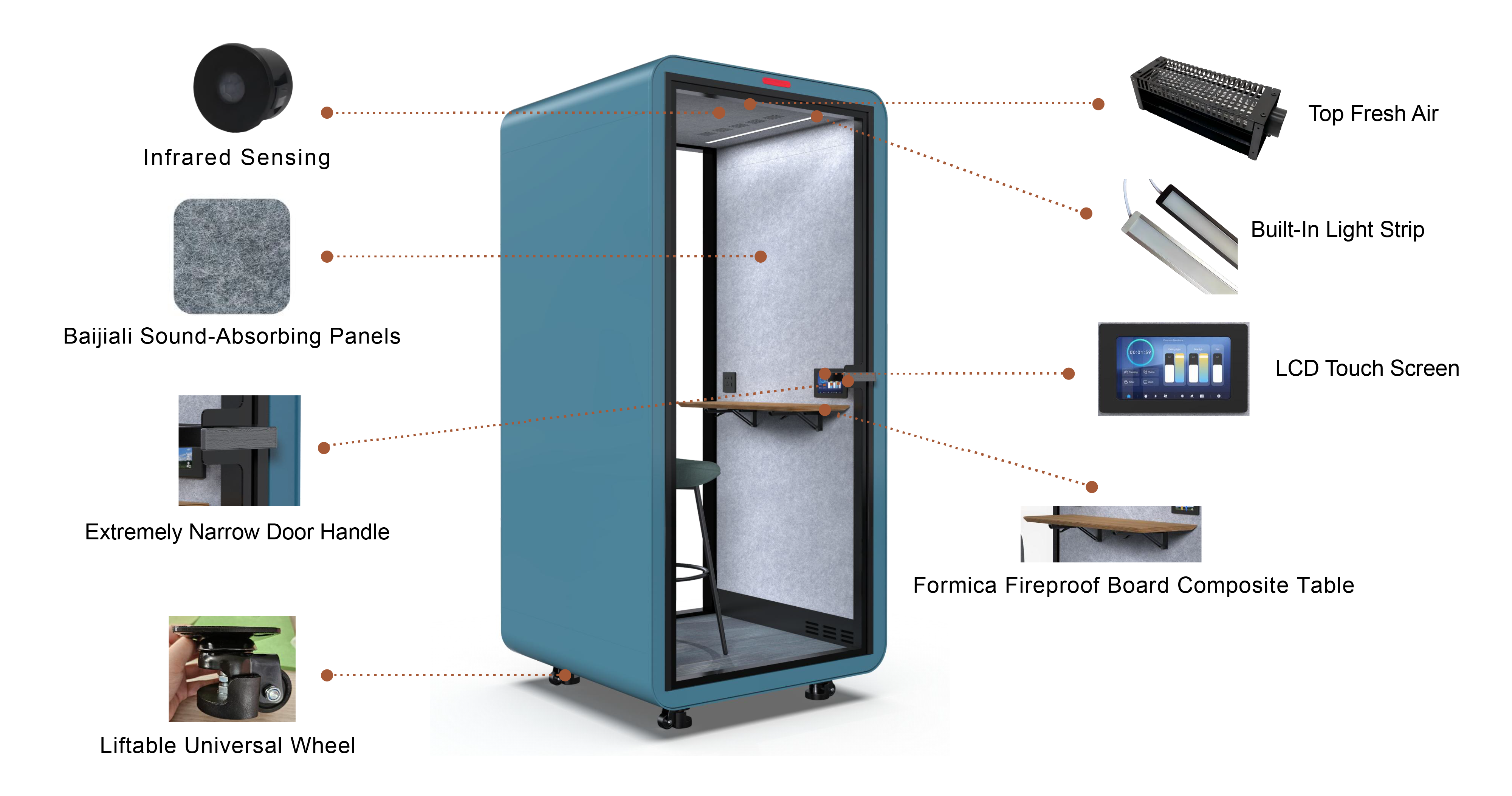

Key Features

Sound reduction: 28–31 dB (tested).
Laminated acoustic tempered glass door (5mm+1.13mm+5mm).
Second-generation fresh air ventilation.
Microwave motion-sensing light with touch dimming.
Integrated 100–230V power panel and cable management.
Powder-coated steel frame, acoustic panels, carpeted floor.
Lockable caster wheels for mobility.

Product Details

Product Dimension

Product Parameters

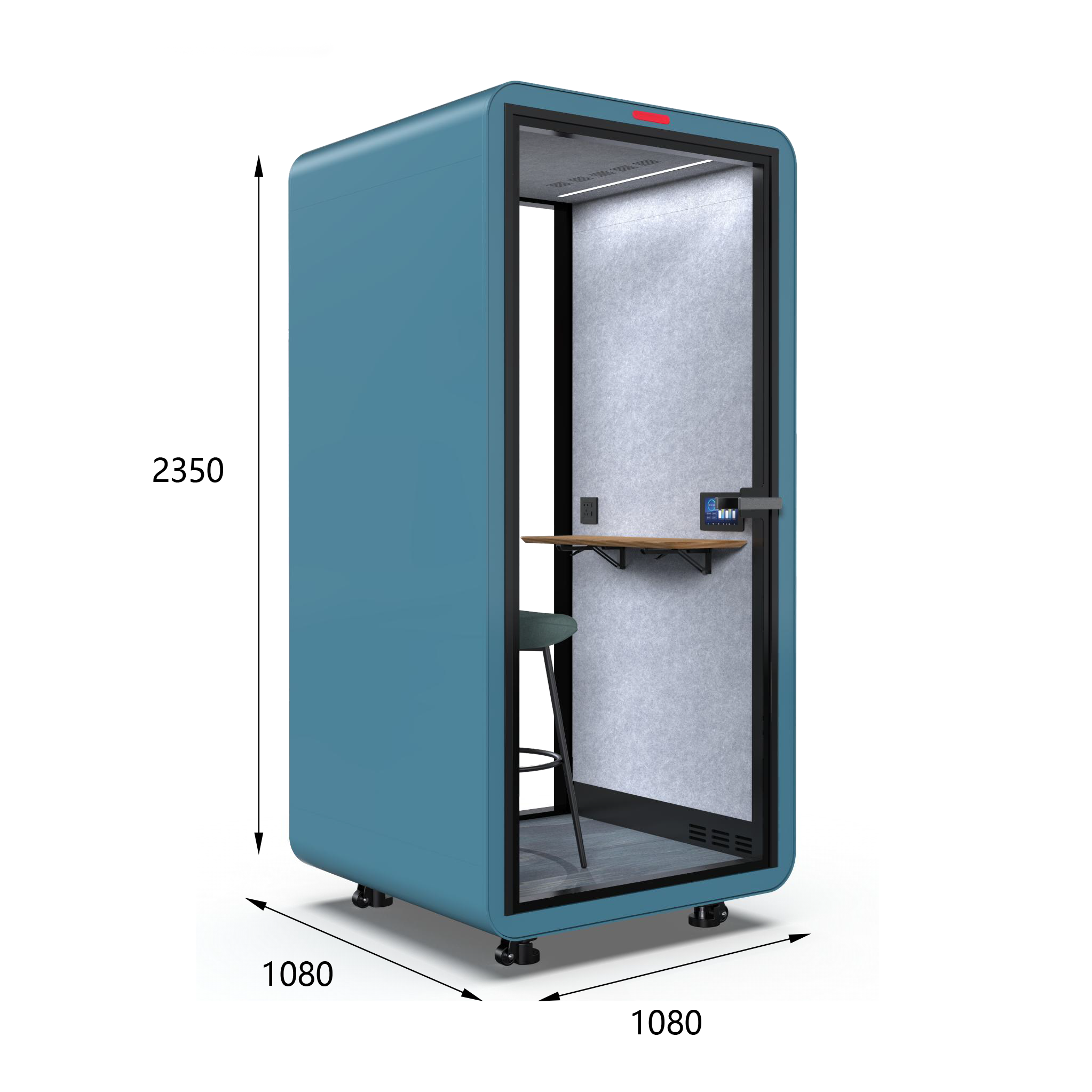

External Dimensions: W1080 mm D1080 mm H2350 mm
Interior Dimensions: W930 mm D986 mm H2050 mm
Interior Structure: Steel Frame

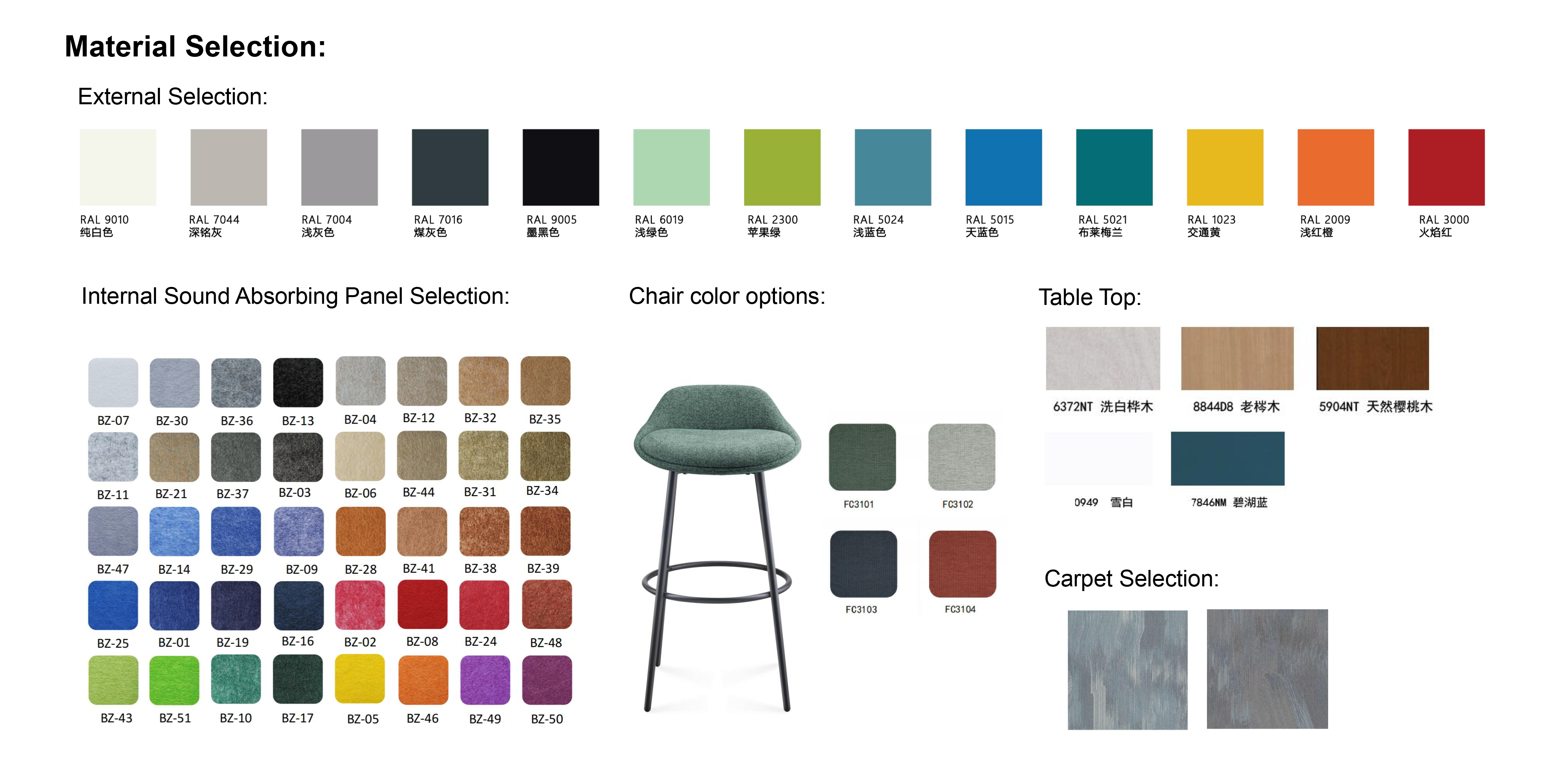

Exterior Finish: AkzoNobel Powder-Coated Steel (RAL Color)
Interior Wall Padding: Polyurethane Sound Insulation
Interior Materials: Baijiali Sound-Absorbing Panels, Milliken Carpet
Door Material: Laminated Sound-Insulating Tempered Glass (5mm + 1.13mm + 5mm)
Lighting: Microwave radar-controlled, turns on when someone is present and turns off after approximately 5 seconds when someone leaves.
Ventilation System: Second-Generation Fresh Air Ventilation System
Furniture: High-legged bar stools, Formica fireproof laminate, and imported marine board wall table (fixed or folding brackets)
Power System: 100-230V socket panel + touchscreen dimming and speed control
Sound Insulation: 31 dB (SGS or Institute of Acoustics, Chinese Academy of Sciences test report)
Mobility: Bottom-mounted casters 4. Removable
