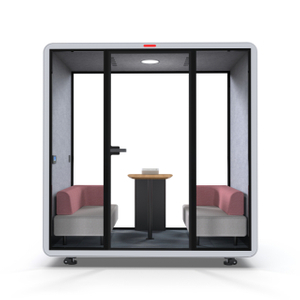

YZ-M-8 — Large Meeting Pod (6–8 Person)

Large modular meeting pod for 6–8 people — configurable for presentations, trainings or client lounges with ventilation and full power.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • YZ-M-8

  • Omni

  • YZ-M-8


TB-ML-2 (D3000)

A large-format meeting pod for groups of 6–8, configurable for presentations, lounge seating or training use.

YZ-M-8 is the largest configurable pod in the series, designed to accommodate teams of six to eight with various interior options—conference tables, lounge setups or mixed seating. Despite the larger footprint, YZ-M-8 maintains acoustic control (28–31 dB) with laminated glass and high-performance absorption materials. Standard systems include second-generation fresh air ventilation, dimmable motion-sensing lighting, robust 100–230V power distribution and AV integration options. YZ-M-8 is ideal where flexible, relocatable meeting rooms or client hospitality areas are needed.


Key Features

  • Capacity: 6–8 people (layout dependent).

  • Multiple configurations: conference table, lounge seating, mixed layouts.

  • Acoustic isolation: 28–31 dB.

  • Advanced ventilation, dimmable lighting and AV-ready mounts.

  • Full power distribution and premium materials.

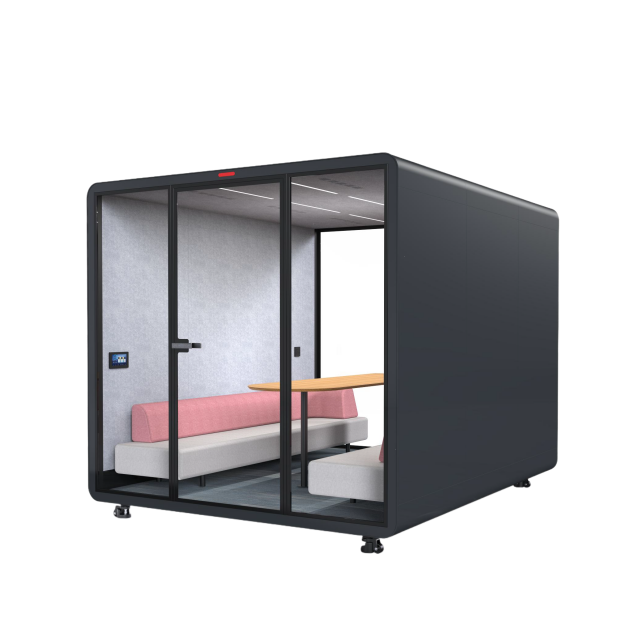

TB-ML-2 (D3000)

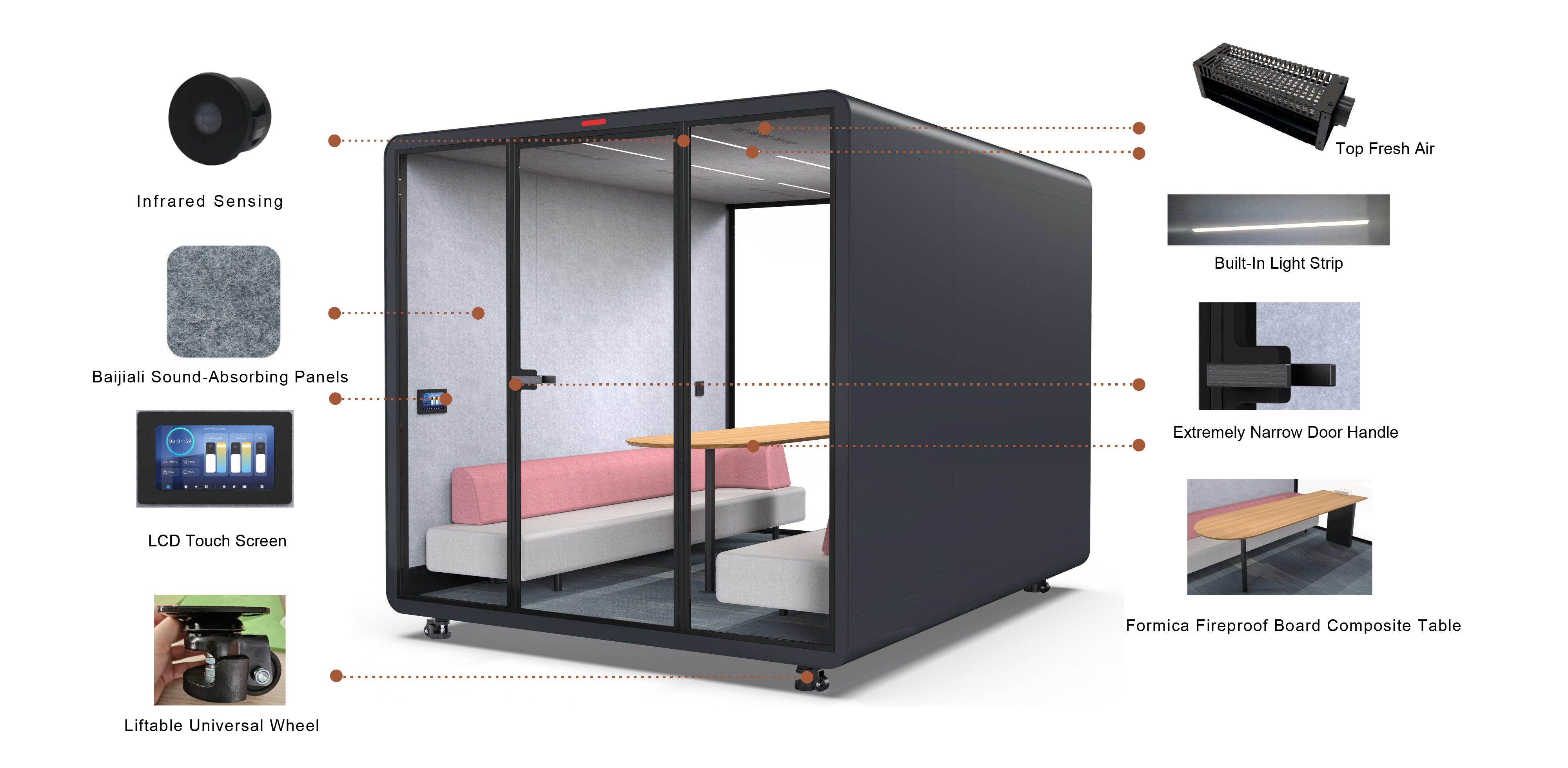

Product Details

TB-ML 细节图 (D3000)

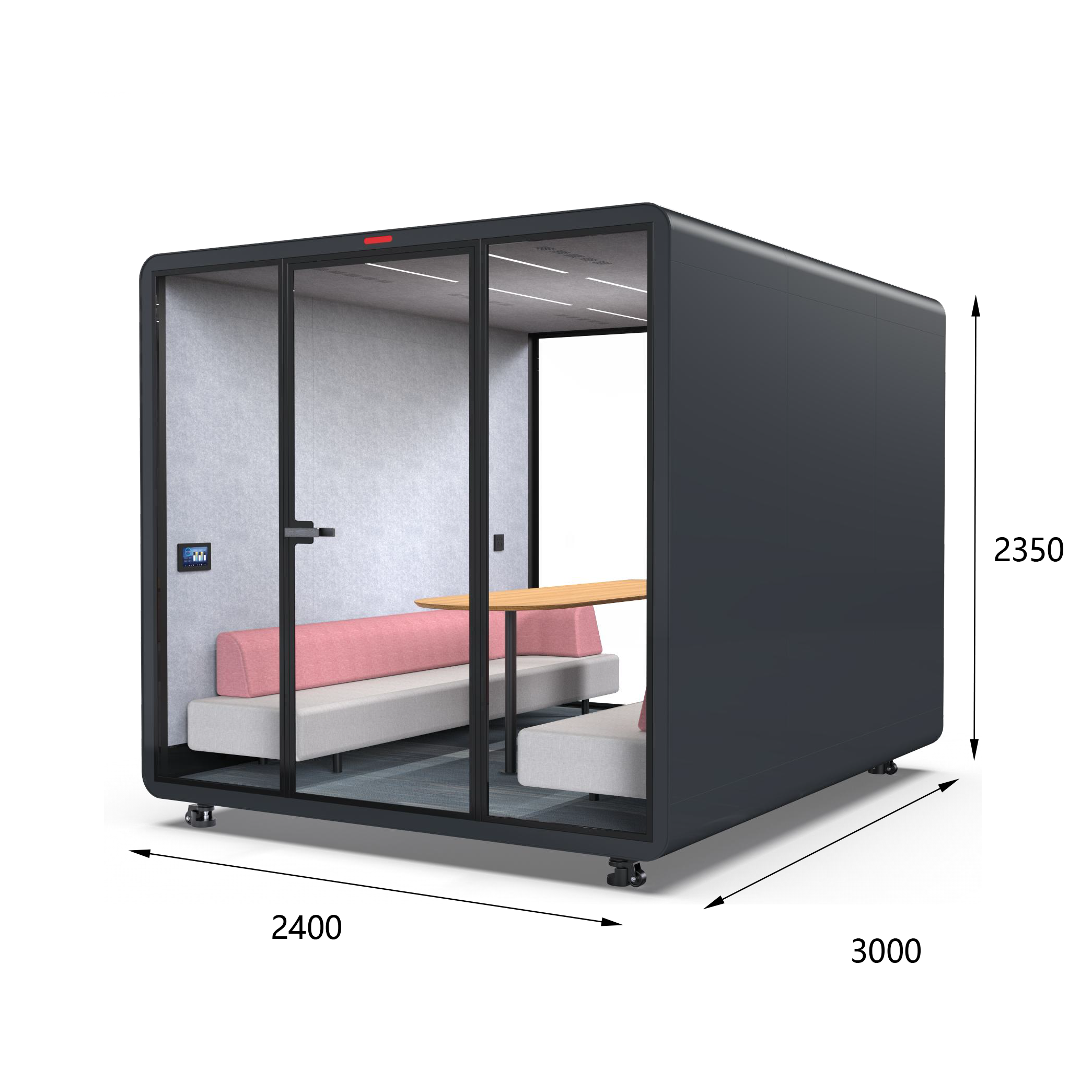

Product Dimension

Product Parameters

TB-ML 尺寸图 (D3000)
  • External Dimensions: W2400 mm D3000 mm H2350 mm

  • Internal Dimensions: W2250 mm D2900 mm H2050 mm

  • Internal Structure: Steel Frame

  • Exterior Finish: AkzoNobel Powder-Coated Steel (RAL Color)

  • Interior Wall Padding: Polyurethane Sound Insulation

  • Interior Materials: Baijiali Sound-Absorbing Panels, Milliken Carpet

  • Door Material: Laminated Sound-Insulating Tempered Glass (5mm + 1.13mm + 5mm)

  • Lighting: Microwave radar-controlled, turns on when someone is present and turns off after approximately 5 seconds of absence

  • Ventilation System: Second-Generation Fresh Air Ventilation System

  • Furniture: Booth Sofa, Formica Fireproof Panel, and Imported Marine Panel Wall Table (Fixed Bracket)

  • Power System: 100-230V Socket Panel + Touchscreen Dimming

  • Sound Isolation: 28-30 dB (SGS or Institute of Acoustics, Chinese Academy of Sciences)

  • Mobility: Bottom-Mounting Universal Casters 4. Removable


TB-M-2 材料选择

  • Use Cases
    Large team meetings, presentations, training pods, client lounges, showroom meeting spaces.

  • What's Included
    Pod shell, chosen interior layout, ventilation & lighting systems, full power distribution, AV mounts (if ordered), installation documentation.

  • Call to Action
    Contact our team for YZ-M-8 floorplans, AV integration options and lead-time estimates.
