OME005.3A1U1C.5
OMNI
OME005.3A1U1C.5

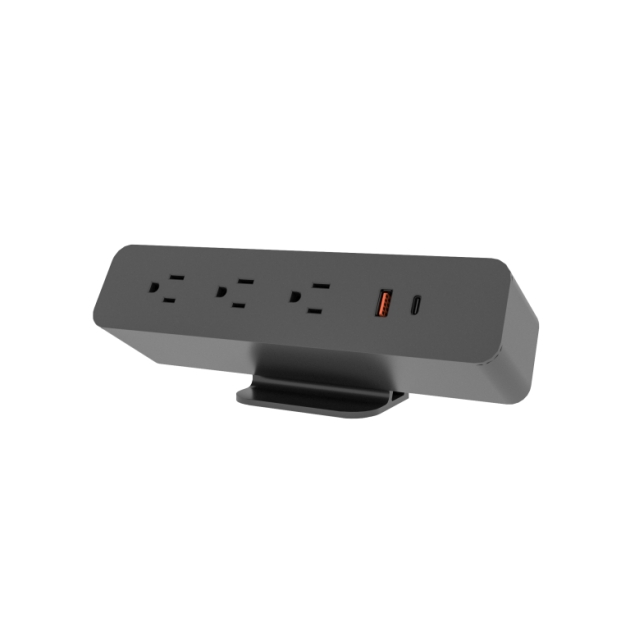

This free-standing desktop power socket offers USB charging capabilities. Featuring three AC outlets, a standard USB-A port, and an advanced USB-C port, it excels in performance for both commercial and residential settings.
Feature:
Outlets: 3 Power Sockets, 1 USB-A, 1 Type-C
Installation: Free Standing
Material: Fire-retardant ABS+PC
Color Options: White, Black, Grey, or customizable
Customization: Support for prototype design, logo, color, and packaging
Certification: UL certified
Specification:
Item No | OME005.3A1U1C.5 |
AC Outlets | 3xNEMA 5-15R |
USB Ports | 1xUSB-A, 1xUSB-C |
Input Voltage | 120VAC,60Hz,(12A max) |
USB Ports | Connected to one of the two ports |
1) USB-A:5V3A,9V2A,12V1.5A (18w max), QC 2.0/3.0 | |
2) USB-C:5V3A,9V2A,12V1.5A (18w max), PD 3.0 | |
Both ports connected | |
USB-A and USB-C: 5V/3A (15W max) | |
Length | 58'(172.7cm) |
Temperature Operating | 0°-30° |
Temperature Operating Storage | 10°-50° |
Drawing:
Application:
This free-standing desktop power socket offers USB charging capabilities. Featuring three AC outlets, a standard USB-A port, and an advanced USB-C port, it excels in performance for both commercial and residential settings.
Feature:
Outlets: 3 Power Sockets, 1 USB-A, 1 Type-C
Installation: Free Standing
Material: Fire-retardant ABS+PC
Color Options: White, Black, Grey, or customizable
Customization: Support for prototype design, logo, color, and packaging
Certification: UL certified
Specification:
Item No | OME005.3A1U1C.5 |
AC Outlets | 3xNEMA 5-15R |
USB Ports | 1xUSB-A, 1xUSB-C |
Input Voltage | 120VAC,60Hz,(12A max) |
USB Ports | Connected to one of the two ports |
1) USB-A:5V3A,9V2A,12V1.5A (18w max), QC 2.0/3.0 | |
2) USB-C:5V3A,9V2A,12V1.5A (18w max), PD 3.0 | |
Both ports connected | |
USB-A and USB-C: 5V/3A (15W max) | |
Length | 58'(172.7cm) |
Temperature Operating | 0°-30° |
Temperature Operating Storage | 10°-50° |
Drawing:
Application:
FAQ:
Q: What is the specification of the lead included with the unit?
A: The lead cord supplied with the unit is 173 CM long and comes with a plug.
Review:
FAQ:
Q: What is the specification of the lead included with the unit?
A: The lead cord supplied with the unit is 173 CM long and comes with a plug.
