OME005.3A1U1C.3
Omni
OME005.3A1U1C.3

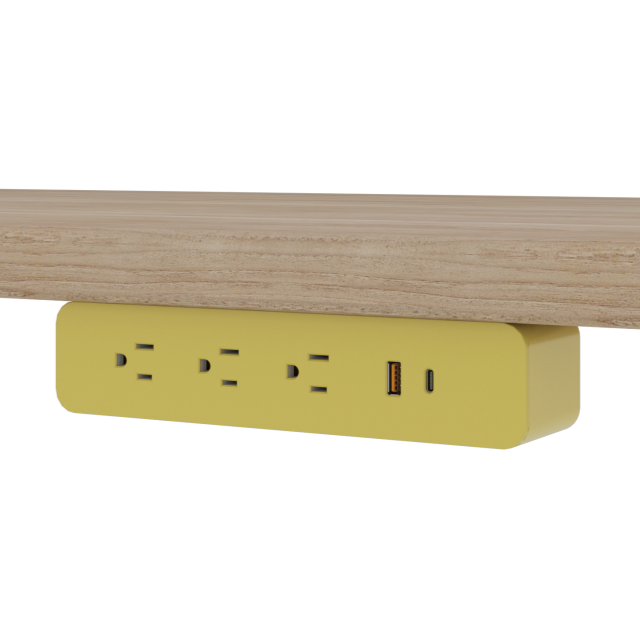

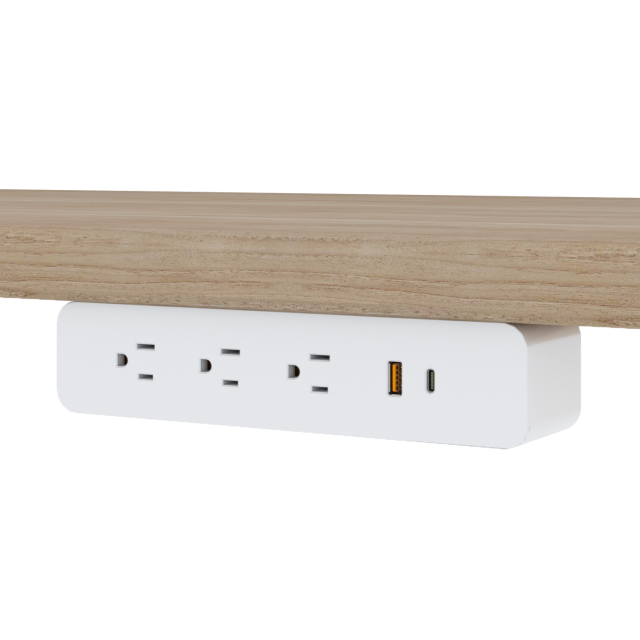

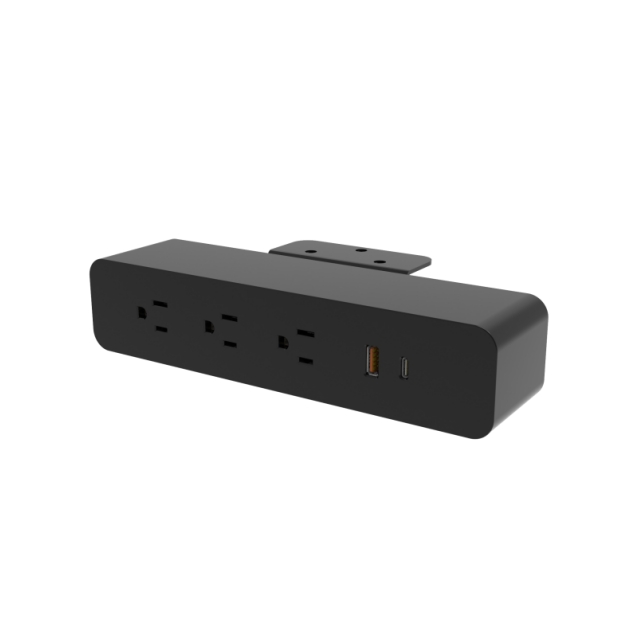

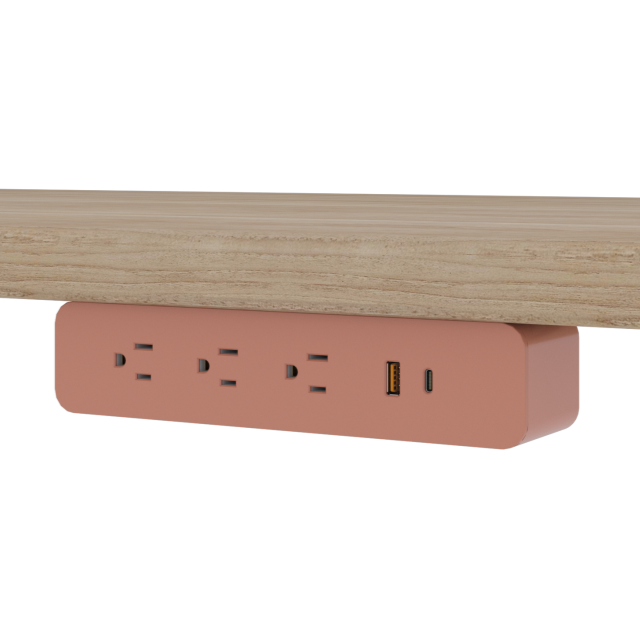

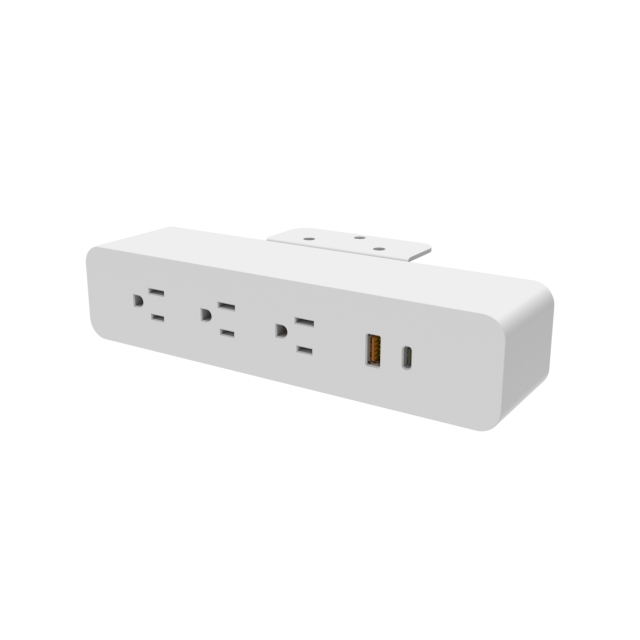

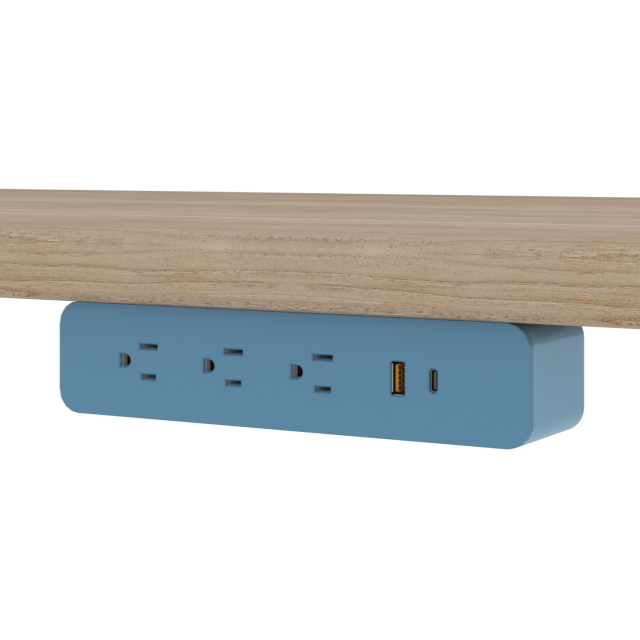

This under-desk power socket features USB charging capabilities. With three AC outlets, a standard USB-A port, and an advanced USB-C port, it delivers excellent performance for both commercial and residential use.
Feature:
Outlets: 3 Power Sockets, 1 USB-A, 1 Type-C
Installation: Under desk
Material: ABS+PC, fire-retardant
Color Options: White, Black, Grey, or customized
Customization: Support for prototype design, logo, color, and packaging
Certification: UL certified
Warranty: 3-year warranty, parts only
Specification:
| Item No | OME005.3A1U1C.3 |
| AC Outlets | 3xNEMA 5-15R |
| USB Ports | 1xUSB-A, 1xUSB-C |
| Input Voltage | 120VAC,60Hz,(12A max) |
| USB Ports | Connected to one of the two ports |
| 1) USB-A:5V3A,9V2A,12V1.5A (18w max), QC 2.0/3.0 | |
| 2) USB-C:5V3A,9V2A,12V1.5A (18w max), PD 3.0 | |
| Both ports connected | |
| USB-A and USB-C: 5V/3A (15W max) | |
| Length | 58'(172.7cm) |
| Temperature Operating | 0°-30° |
| Temperature Operating Storage | 10°-50° |
Application:
