OME005.3A1U1C.1
OMNI
OME005.3A1U1C.1

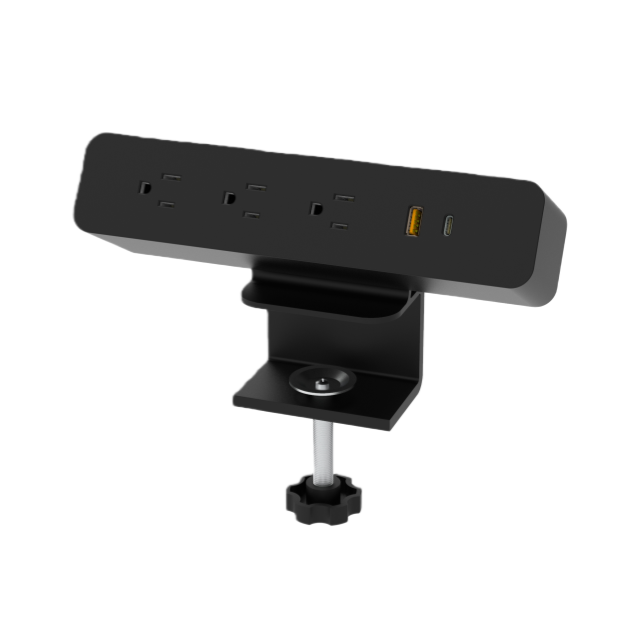

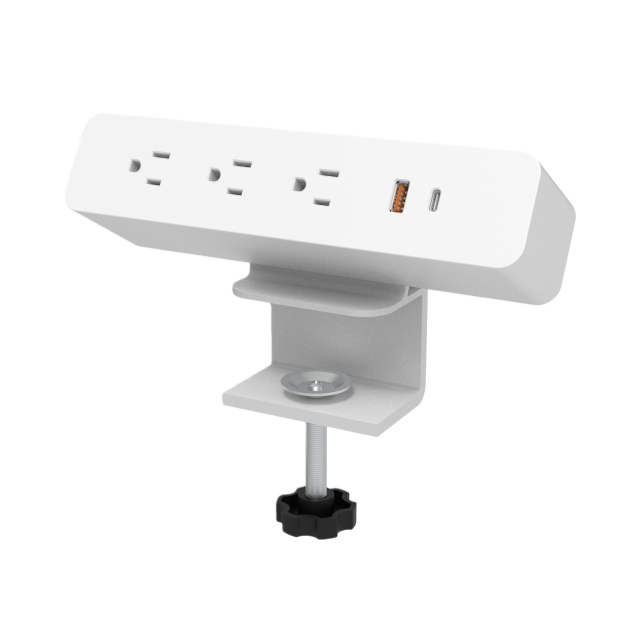

This is a multi-ful desktop power sockets with USB charging. Three AC outlets, a standard USB-A port and a tech-forward USB-C port make this power socket do an excllent performace in commercial and Residential accasions.It is easy to fix it to the desktop with clamp.
Feature:
3 Power Sockets + 1 USB-A + 1 Type-C
Installation option: side clamp for easy, quick, and tool-free installation
ABS+PC Fire Retardant

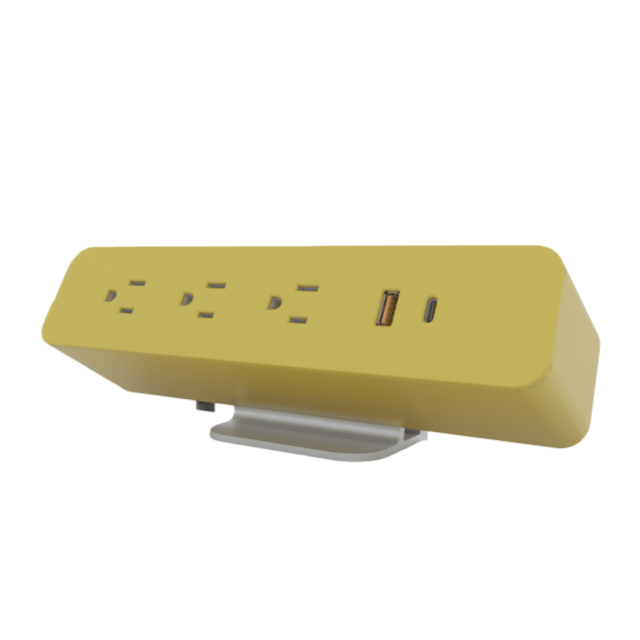

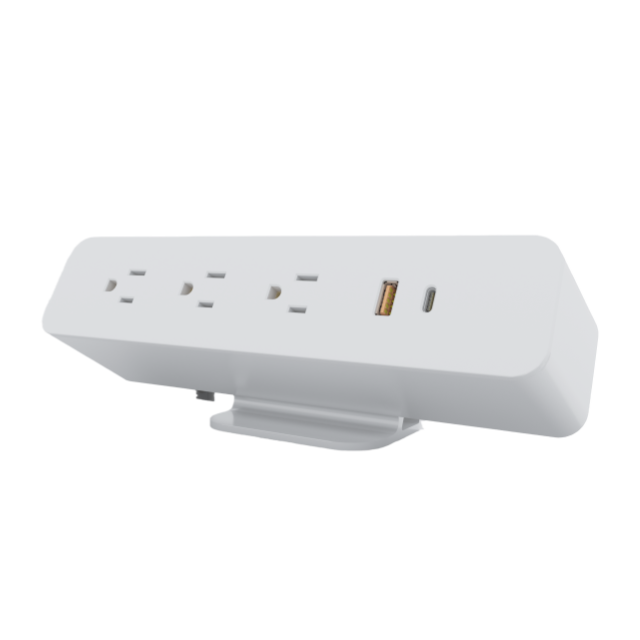

Color: White, Black, Grey or customized
Customized support: Prototype design, Logo, Color, Package
Certification: UL
Warranty: 3 years, parts only
Specification:
| Item No. | OME005.3A1U1C.1 |
| AC Outlets | 3xNEMA 5-15R |
| USB Ports | 1xUSB-A, 1xUSB-C |
| Input Voltage | 120VAC,60Hz,(12A max) |
| USB Ports | Connected to one of the two ports |
| 1) USB-A:5V3A,9V2A,12V1.5A (18w max), QC 2.0/3.0 | |
| 2) USB-C:5V3A,9V2A,12V1.5A (18w max), PD 3.0 | |
| Both ports connected | |
| USB-A and USB-C: 5V/3A (15W max) | |
| Length | 58'(172.7cm) |
| Temperature Operating | 0°-30° |
| Temperature Operating Storage | 10°-50° |
Drawing:
Application:
This is a multi-ful desktop power sockets with USB charging. Three AC outlets, a standard USB-A port and a tech-forward USB-C port make this power socket do an excllent performace in commercial and Residential accasions.It is easy to fix it to the desktop with clamp.
Feature:
3 Power Sockets + 1 USB-A + 1 Type-C
Installation option: side clamp for easy, quick, and tool-free installation
ABS+PC Fire Retardant
Color: White, Black, Grey or customized
Customized support: Prototype design, Logo, Color, Package
Certification: UL
Warranty: 3 years, parts only
Specification:
| Item No. | OME005.3A1U1C.1 |
| AC Outlets | 3xNEMA 5-15R |
| USB Ports | 1xUSB-A, 1xUSB-C |
| Input Voltage | 120VAC,60Hz,(12A max) |
| USB Ports | Connected to one of the two ports |
| 1) USB-A:5V3A,9V2A,12V1.5A (18w max), QC 2.0/3.0 | |
| 2) USB-C:5V3A,9V2A,12V1.5A (18w max), PD 3.0 | |
| Both ports connected | |
| USB-A and USB-C: 5V/3A (15W max) | |
| Length | 58'(172.7cm) |
| Temperature Operating | 0°-30° |
| Temperature Operating Storage | 10°-50° |
Drawing:
Application:
