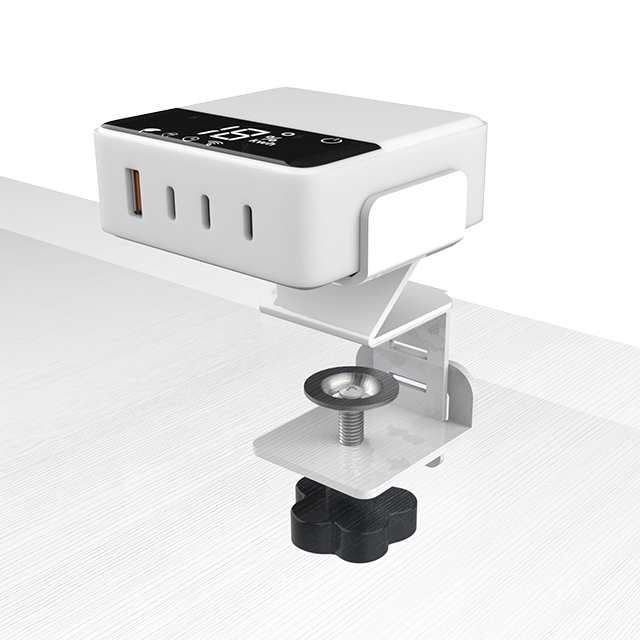

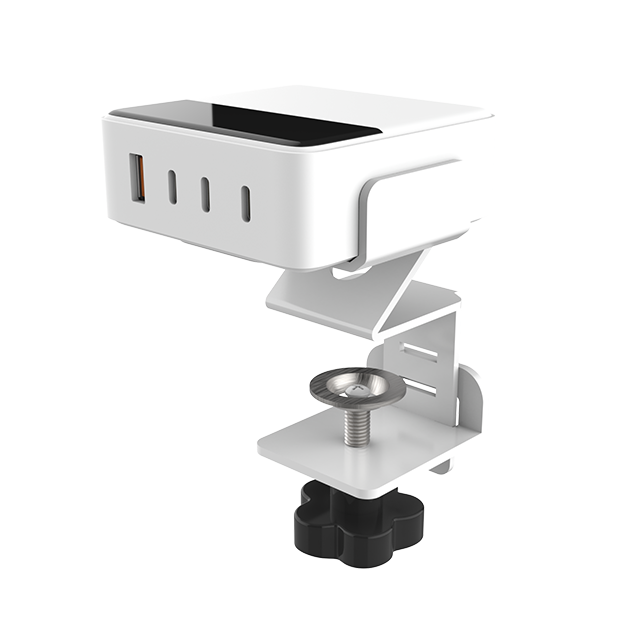

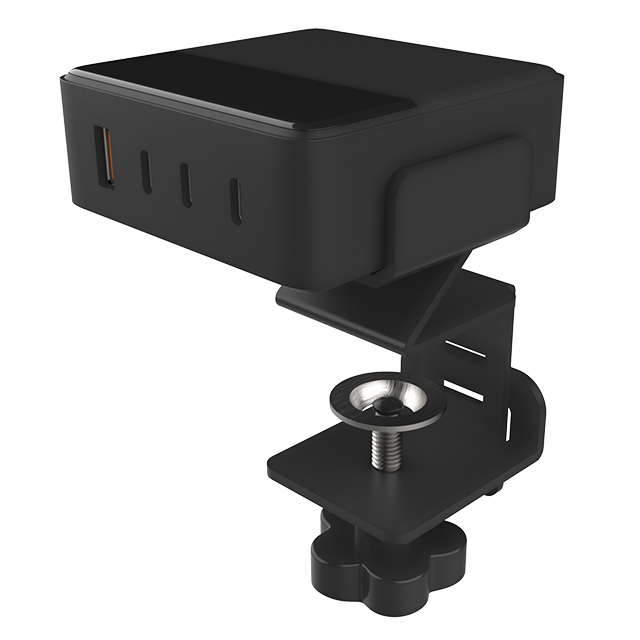

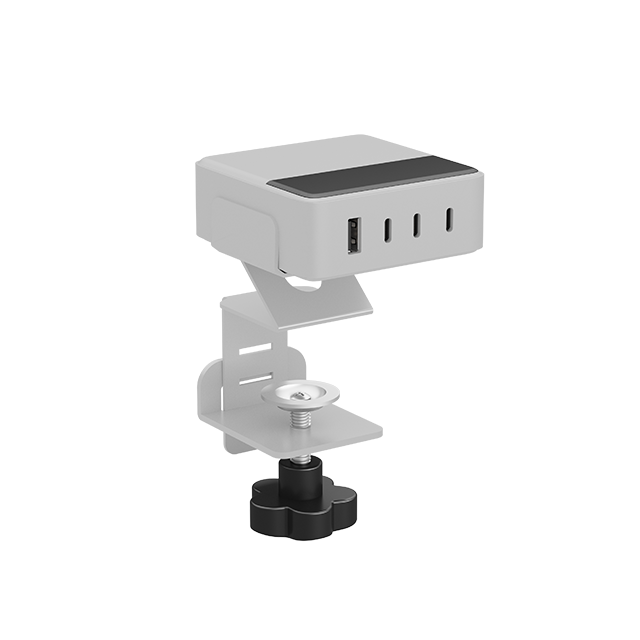

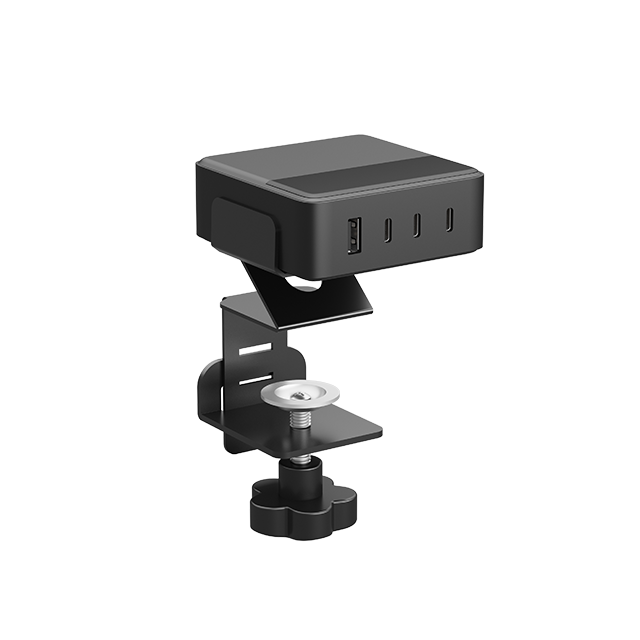

OT-SCAS-008 100W GaN Desk-Edge Clamp Charger — 4-Port USB (C×3 + A)

OT-SCAS-008 is a 100W GaN desktop fast charger with 3×USB-C and 1×USB-A, designed for secure desk-edge clamping and simultaneous high-speed charging.

Quantity:
Availability:





Inquire Add to Basket

Model:
OT-SCAS-008
Brand:
Omni
Code:
OT-SCAS-008

Product Description

OT-SCAS-008 100W GaN Desk-Edge Clamp Charger — 4-Port USB (C×3 + A)

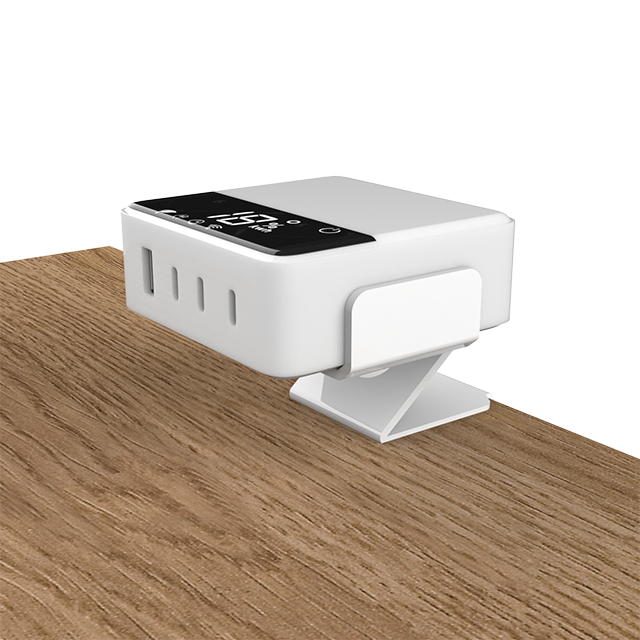

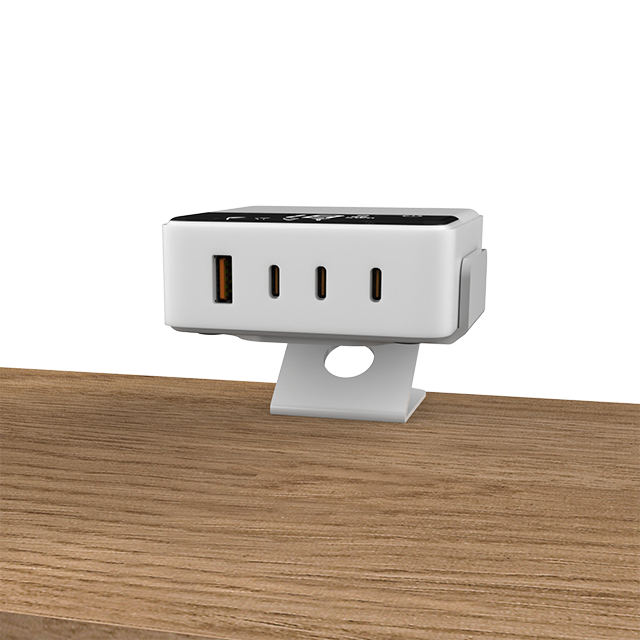

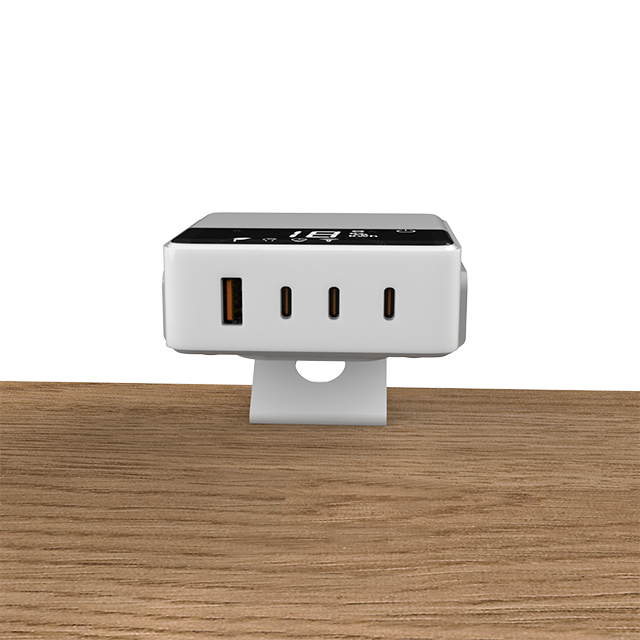

The OT-SCAS-008 (Model: TC-118CCCA100) is a compact, high-efficiency 100W GaN desktop fast charger engineered for desk-edge clamping. With three USB-C ports and one USB-A port, this module provides flexible power distribution to laptops, tablets and mobile devices while keeping surfaces clear and cables neatly managed.

Why choose OT-SCAS-008?

Desk-edge clamp mounting keeps the charger within reach without occupying desktop real estate.
GaN technology delivers high power density in a small footprint — cooler operation and better efficiency.
Multiple ports and intelligent power allocation let teams charge laptops, monitors, phones and accessories simultaneously.

Key Features

Model: TC-118CCCA100
Item No.: OT-SCAS-008
Mounting: Desk-edge clamp (single installation method)
Power technology: GaN (Gallium Nitride) for compact, efficient conversion

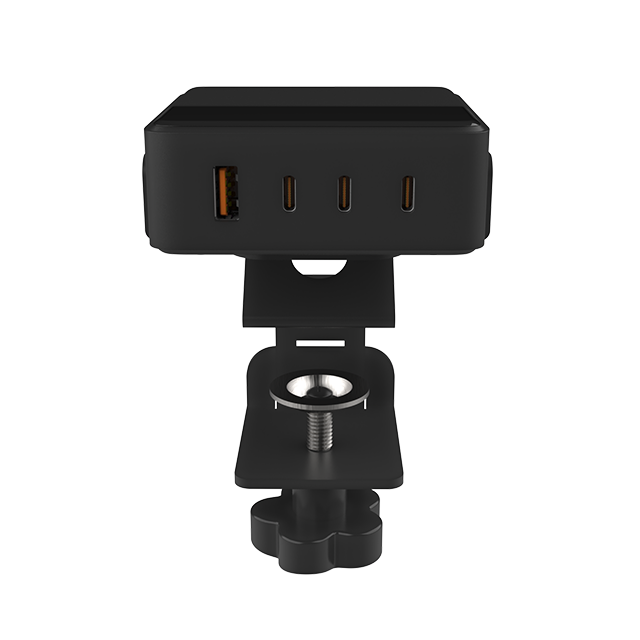

Ports: 3× USB-C + 1× USB-A
Total Maximum Power: 100W

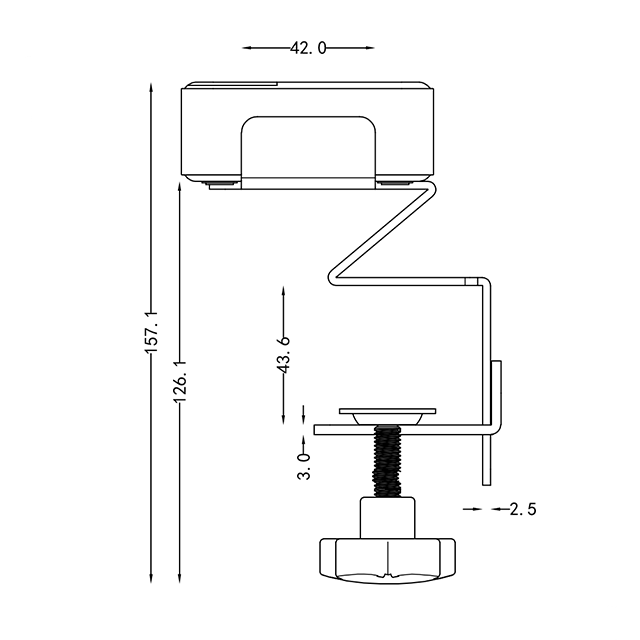

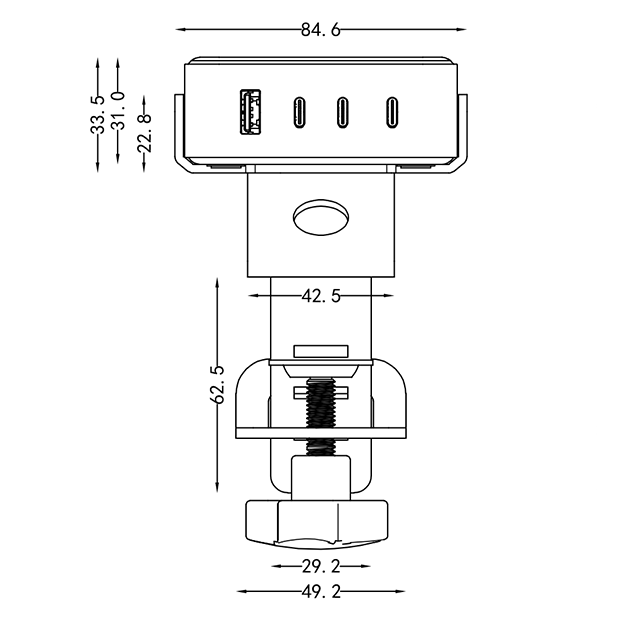

Product Dimensions

	Electrical Specifications
	Input: 100–240V ~ 50/60Hz, 1.5A USB-C1 / USB-C2 / USB-C3 (each): 5V / 9V / 12V / 15V @ 3A, 20V @ 5A (100W Max) USB-C1 / C2 / C3 / A: 10V @ 2.25A (listed combined spec) USB-A: 5V / 9V / 12V / 20V @ 3A (60W Max per port spec listed)
	Common Multi-Port Combinations
	USB-C1 + USB-C2: 65W + 30W USB-C1/C2 + USB-C3/A: 65W + 30W USB-C3 + USB-A: 7.5W + 7.5W USB-C1 + USB-C2 + USB-C3: 45W + 30W + 20W USB-C1 + USB-C2 + USB-A: 45W + 30W + 18W USB-C1/C2 + USB-C3 + A: 65W + 7.5W + 7.5W USB-C1 + USB-C2 + USB-C3 + USB-A: 45W + 30W + 7.5W + 7.5W Total output: 100W Max — dynamic allocation depending on connected devices.

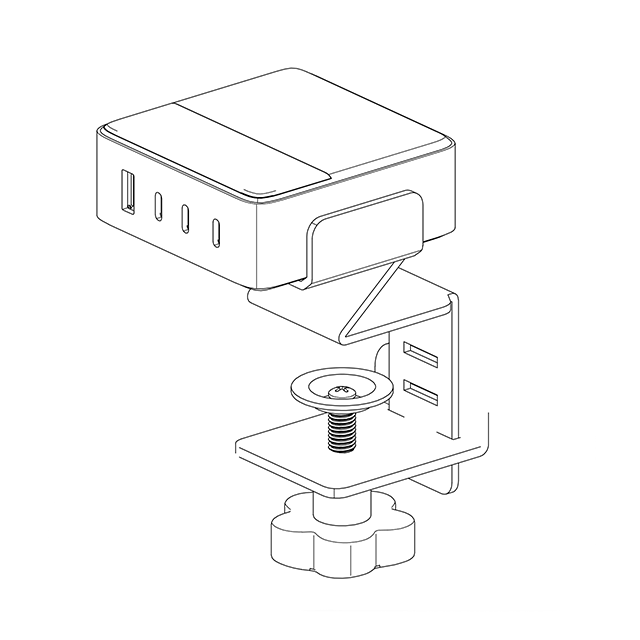

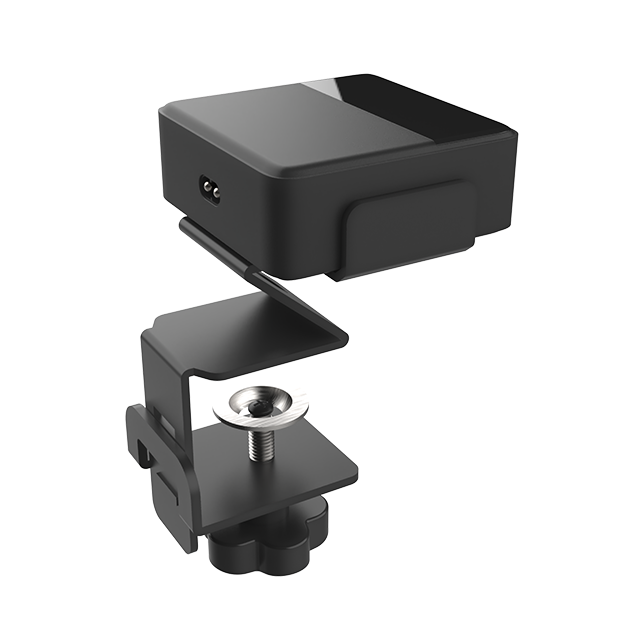

Installation & Mounting

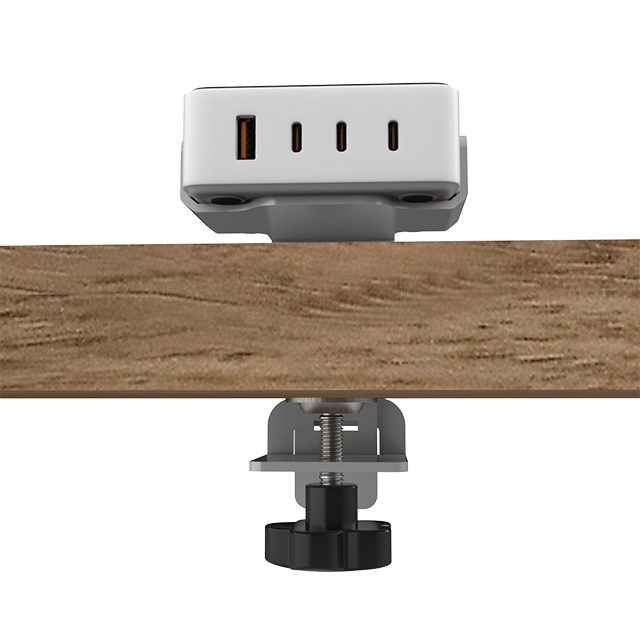

Mounting method: Desk-edge clamp only.
Clamp securely to desk edges, tabletops or worktops within the recommended thickness range (check datasheet for exact clamp capacity). Designed for easy installation and tool-free adjustments in many setups.

Typical Use Cases

Hot-desking and shared workspaces — provide convenient power to guests and employees.
Home offices where surface space is limited.
Meeting rooms and collaboration zones for charging multiple devices at once.
Retail demo counters or reception desks needing accessible charging.

Compatibility

Supports USB-C power delivery (PD) profiles and standard USB-A charging protocols.
Compatible with laptops, ultrabooks, tablets, phones, and USB-powered accessories that accept the listed voltage/current profiles.
