Hi.Docker Power Beam

With five widths (36"W, 42"W, 48"W, 60"W, 72"W) as well as multiple configuration options (straight, 90° and 120°connections), Power Beam allows you to create a multitude of configurations using either height adjustable or fixed height tables.

Item No: VPB.1W.
Width: 36"W, 42"W, 48"W, 60"W, 72"W
End Leg Options: Square Style, Flat Style

Quantity:
Availability:





Inquire Add to Basket

Model:
VPB.1W.
Brand:
Omni
Code:
VPB.1W.

Docker Power Beam

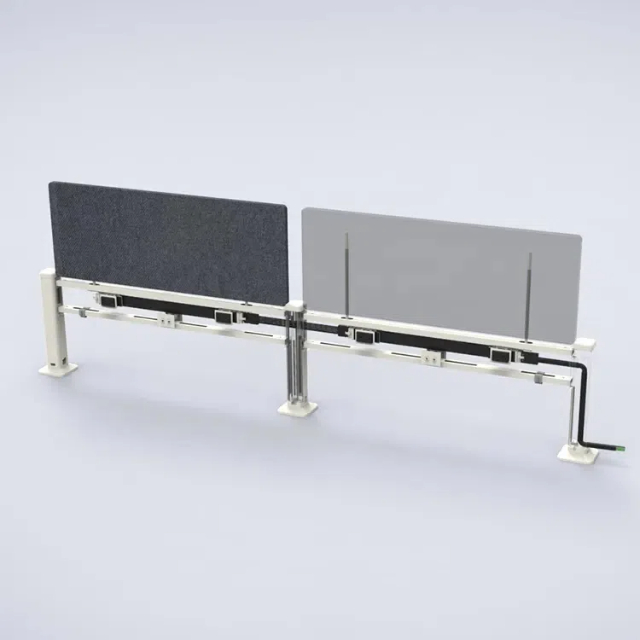

Docker Power Beam offers a flexible solution for creating light-scale space divisions with integrated power and data distribution. The beam supports screens for varying privacy levels. With five widths (36"W, 42"W, 48"W, 60"W, 72"W) as well as multiple configuration options (straight, 90° and 120°connections), it allows you to create a multitude of configurations using either height adjustable or fixed height tables.


	Shown with: Sit Stand Desk

Docker Power Beam Specifications:

Four 120 V A/C outlets per seat	US National Electrical Code allows up to 16 120 V receptacle per 20 A circuit
Two CAT6 intranet outlets per seat	Title 24 Configurable
Available in silver, black, and white	1, 2, or 4 circuit 20 A 120 V A/C configuration options
Tack-able fabric covered shared divider panels in 2 heights & 4 colors for privacy and sound absorption	Up to 4 seats per power entry with 1 dedicated 120 V 20 A circuit (Non-Title 24 Compliant)
Powder coated steel construction	Up to 8 seats per power entry with 2 dedicated 120 V 20 A circuits (Can be Title 24 Compliant)
Power Distribution System UL Certified to UL Standard #UL1286	Up to 16 seats per power entry with 2 dedicated 120 V 20 A circuits (Can be Title 24 Compliant)
Pairs easily with commercial open market power service poles

Docker Power Beam 2025-3

Power Beam Configurations

Use these configurations or create your own!


Single Station	2 Person Shape	Bending Shape	X-Shape	4 Person Shape

Note: Docker Power Beam works with freestanding height-adjustable or fixed-height desks and tables. Docker Power Beam does not support attached worksurfaces.

Docker Power Beam Parts

Electrical Parts

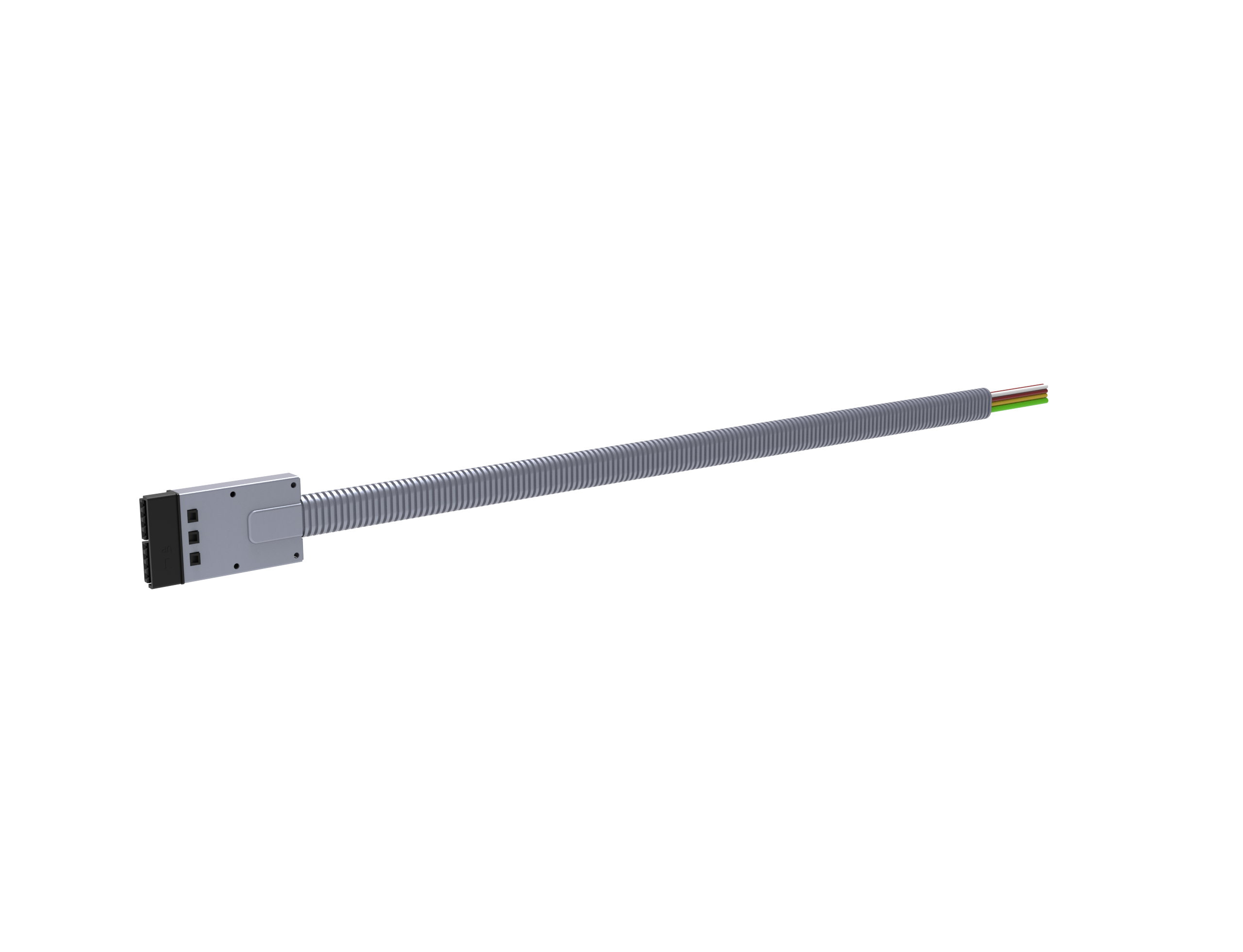

Power Beam Jumper/ Connector Cable	Ceiling Feed 4 Cir 8 Wire	Power Beam Hard Wire Power Entry	Power Beam Receptacles – Standard or Title 24
