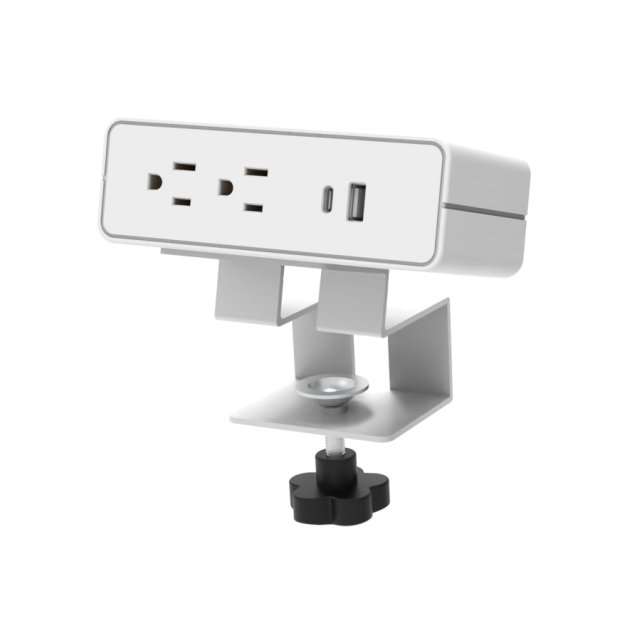

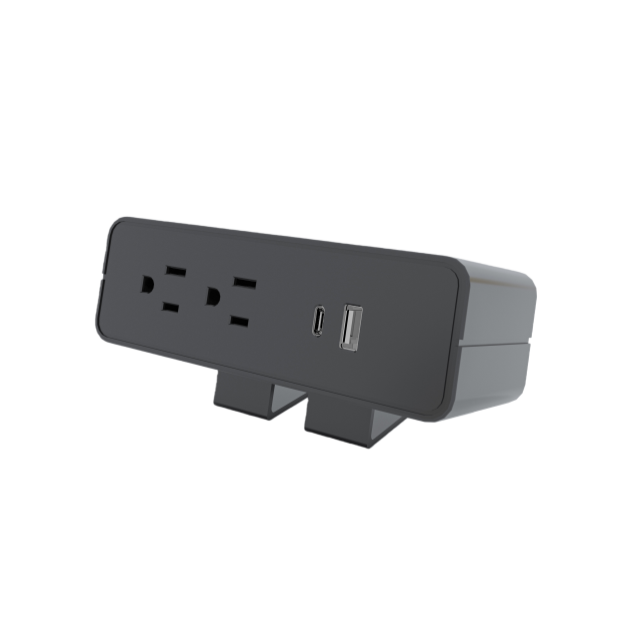

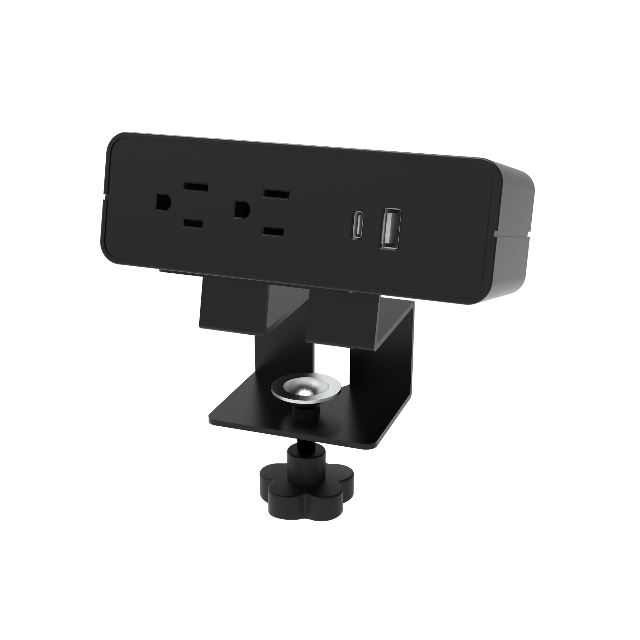

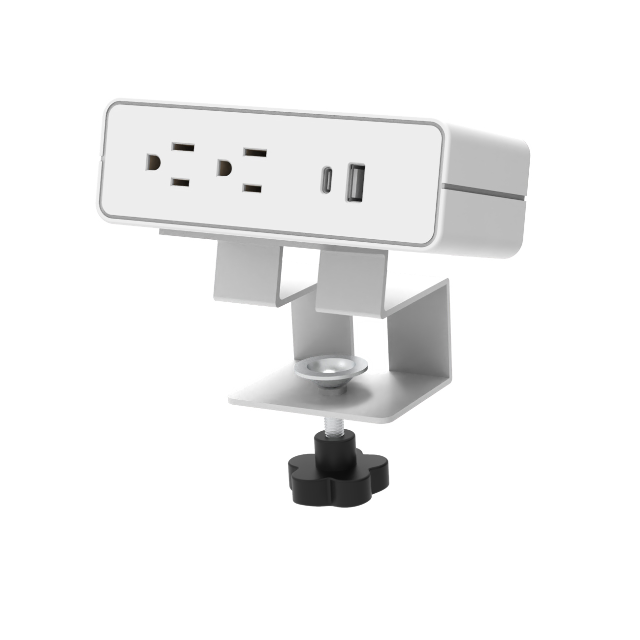

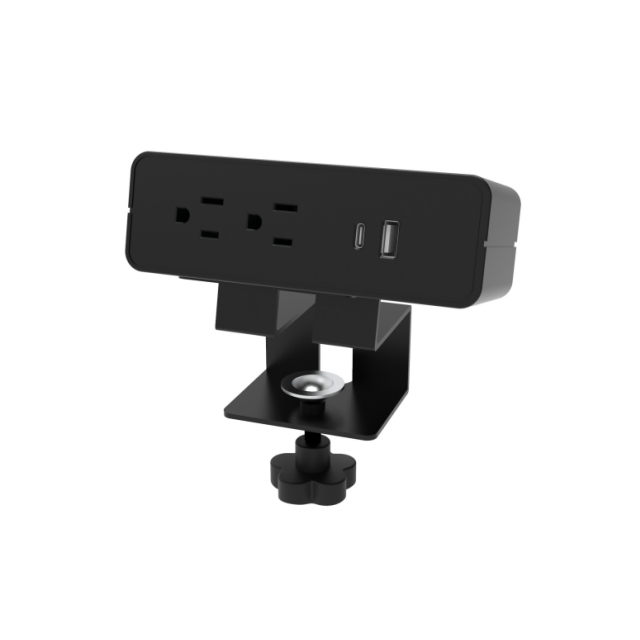

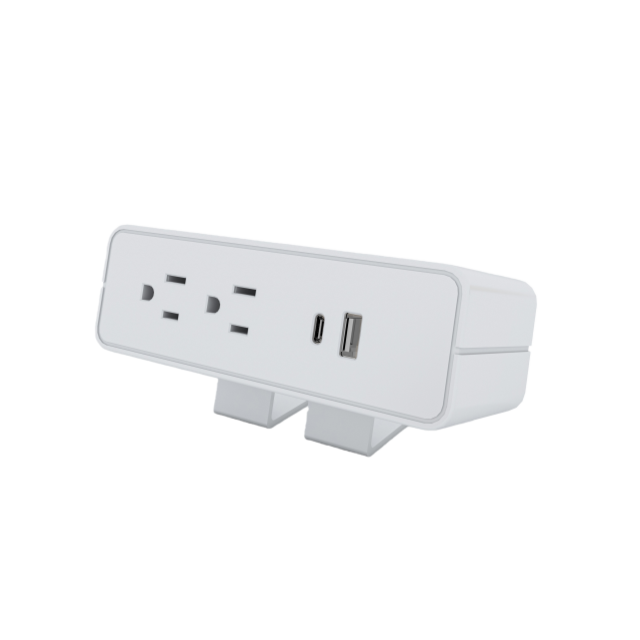

Create Series ABS Material Power Socket

This is a standard power strip with USB charging. Two AC outlets, a standard USB-A port and a tech-forward USB-C port make this power strip do a excllent performace in commercial and Residential accasions.

  • AC outlets: 2xNEMA 5-15R
  • USB Ports: 1xUSB-A, lxUSB-C
  • Input Voltage: 120VAC,60Hz,(12A max)


Color:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • OM-2A1U1C

  • OMNI

  • OM-2A1U1C

This is a standard power strip with usb charging. Two AC outlets, a standard USB-A port and a tech-forward USB-C port make this power strip do a excllent performace in commercial and Residential accasions.


Feature:

  • 2 Power Sockets + 1 USB + 1 Type-C

  • Installation option: side clamp for easy, quick, and tool-free installation

  • Material: ABS+PC Fire Retardant

  • Color: White, Black, Grey or customized

  • Customized support: Prototype design, Logo, Color, Package

  • Certification: CE, UL


Specification:

Item No. OM-2A1U1C
AC Outlets 2xNEMA 5-15R
USB Ports 1xUSB-A, lxUSB-C
Input Voltage 120VAC,60Hz,(12A max)
USB Ports Connected to one of the two ports
1) USB-A:5V/3A,9V/2A,12/1.5A (15W max)
2) USB-C:5V/3A,9V/2.2A,15V/1.4A,20V/1.25A (25W max)
Both ports connected
USB-A: 5V/1.5A (10W max)
USB-C: 5V/2.0A ( 10W max)
Length 58'(172.7cm)
Temperature Operating 0°-30°
Temperature Operating Storage 10°-50°


Drawing:

Create 2A1U1C Drawing

Application:

111111


FAQ:

Q: Can you provide customized service?
A: Yes, we can provide OEM&ODM services.
